Question 71

What is the primary effect of the spanning-tree portfast command?

A. It immediately enables the port in the listening state.

B. It immediately puts the port into the forwarding state when the switch is reloaded.

C. It enables BPDU messages.

D. It minimizes spanning-tree convergence time.

Question 72

Which result occurs when PortFast is enabled on an interface that is connected to another switch?

A. Root port choice and spanning tree recalculation are accelerated when a switch link goes down.

B. After spanning tree converges, PortFast shuts down any port that receives BPDUs.

C. VTP is allowed to propagate VLAN configuration information from switch to switch automatically.

D. Spanning tree may fail to detect a switching loop in the network that causes broadcast storms.

Question 73

Which QoS Profile is selected in the GUI when configuring a voice over WLAN deployment?

A. Platinum

B. Bronze

C. Gold

D. Silver

Question 74

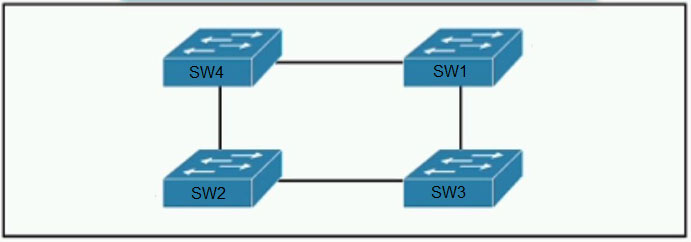

Refer to the exhibit. Which switch in this configuration will be elected as the root bridge?

SW1: 0C:E0:38:41:86:07 -

SW2: 0C:0E:15:22:05:97 -

SW3: 0C:0E:15:1A:3C:9D -

SW4: 0C:E0:18:A1:B3:19 -

A. SW1

B. SW2

C. SW3

D. SW4

Question 75

DRAG DROP -

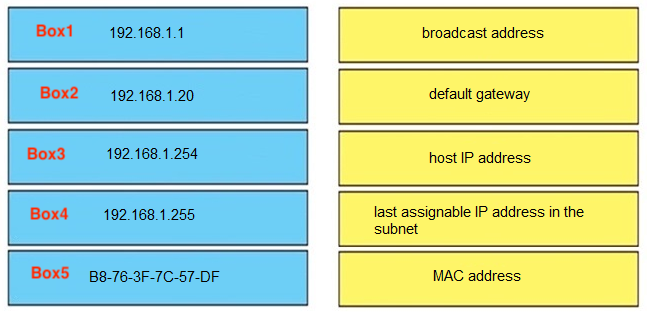

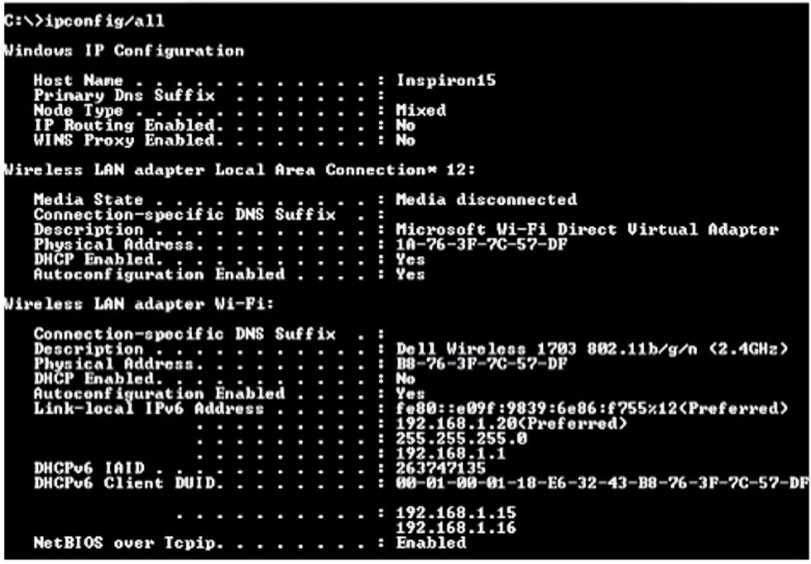

Refer to the exhibit. An engineer is tasked with verifying network configuration parameters on a client workstation to report back to the team lead. Drag and drop the node identifiers from the left onto the network parameters on the right.

Select and Place:

A. Box1 -> Box4 -> Box2 -> Box3 -> Box5

B. Box4 -> Box1 -> Box2 -> Box3 -> Box5

C. Box4 -> Box1 -> Box3 -> Box2 -> Box5

D. Box4 -> Box1 -> Box2 -> Box5 -> Box3

Question 76

An engineer needs to configure LLDP to send the port description time length value (TLV). Which command sequence must be implemented?

A. switch(config-if)#lldp port-description

B. switch#lldp port-description

C. switch(config-line)#lldp port-description

D. switch(config)#lldp tlv-select port-description

Question 77

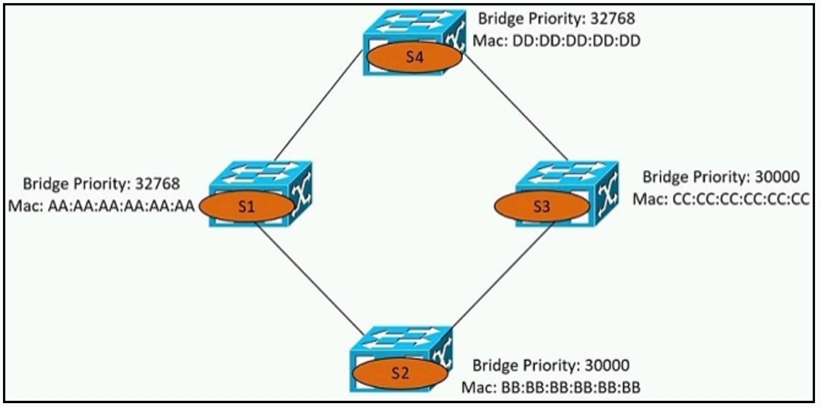

Refer to the exhibit. Which switch becomes the root bridge?

A. S1

B. S2

C. S3

D. S4

Question 78

Which configuration ensures that the switch is always the root for VLAN 750?

A. Switch(config)#spanning-tree vlan 750 priority 38418607

B. Switch(config)#spanning-tree vlan 750 priority 0

C. Switch(config)#spanning-tree vlan 750 root primary

D. Switch(config)#spanning-tree vlan 750 priority 614440

Question 79

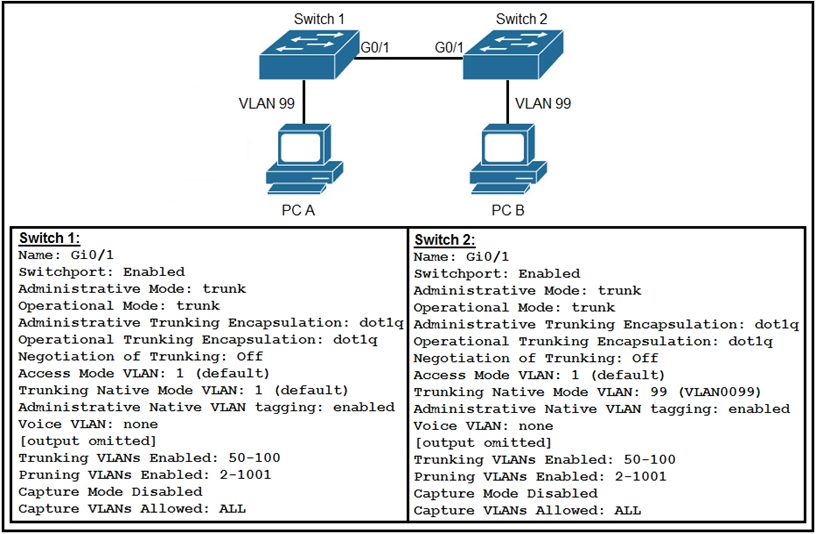

Refer to the exhibit. After the switch configuration, the ping test fails between PC A and PC B. Based on the output for switch 1, which error must be corrected?

A. The PCs are in the incorrect VLAN.

B. All VLANs are not enabled on the trunk.

C. Access mode is configured on the switch ports.

D. There is a native VLAN mismatch.

Question 80

Which statement identifies the functionality of virtual machines?

A. The hypervisor communicates on Layer 3 without the need for additional resources.

B. Each hypervisor can support a single virtual machine and a single software switch.

C. The hypervisor can virtualize physical components including CPU, memory, and storage.

D. Virtualized servers run most efficiently when they are physically connected to a switch that is separate from the hypervisor.
