Question 61

Which two options are the best reasons to use an IPV4 private IP space? (Choose two.)

Select all that apply

A. to enable intra-enterprise communication

B. to implement NAT

C. to connect applications

D. to conserve global address space

E. to manage routing overhead

Question 62

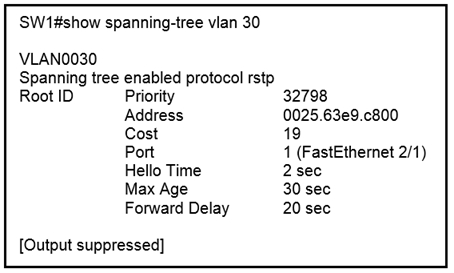

Refer to the exhibit. What two conclusions should be made about this configuration? (Choose two.)

Select all that apply

A. The root port is FastEthernet 2/1

B. The designated port is FastEthernet 2/1

C. The spanning-tree mode is PVST+

D. This is a root bridge

E. The spanning-tree mode is Rapid PVST+

Question 63

A network engineer must create a diagram of a multivendor network. Which command must be configured on the Cisco devices so that the topology of the network can be mapped?

A. Device(config)#lldp run

B. Device(config)#cdp run

C. Device(config-if)#cdp enable

D. Device(config)#flow-sampler-map topology

Question 64

What is difference between RADIUS and TACACS+?

A. RADIUS logs all commands that are entered by the administrator, but TACACS+ logs only start, stop, and interim commands.

B. TACACS+ separates authentication and authorization, and RADIUS merges them.

C. TACACS+ encrypts only password information, and RADIUS encrypts the entire payload.

D. RADIUS is most appropriate for dial authentication, but TACACS+ can be used for multiple types of authentication.

Question 65

What is a difference between local AP mode and FlexConnect AP mode?

A. Local AP mode creates two CAPWAP tunnels per AP to the WLC

B. Local AP mode causes the AP to behave as if it were an autonomous AP

C. FlexConnect AP mode fails to function if the AP loses connectivity with the WLC

D. FlexConnect AP mode bridges the traffic from the AP to the WLC when local switching is configured

Question 66

The SW1 interface g0/1 is in the down/down state. Which two configurations are valid reasons for the interface condition? (Choose two.)

Select all that apply

A. There is a protocol mismatch

B. There is a duplex mismatch

C. The interface is shut down

D. The interface is error-disabled

E. There is a speed mismatch

Question 67

How will Link Aggregation be implemented on a Cisco Wireless LAN Controller?

A. The EtherChannel must be configured in "mode active".

B. When enabled, the WLC bandwidth drops to 500 Mbps.

C. To pass client traffic, two or more ports must be configured.

D. One functional physical port is needed to pass client traffic.

Question 68

Which two conditions must be met before SSH operates normally on a Cisco IOS switch? (Choose two.)

Select all that apply

A. IP routing must be enabled on the switch.

B. A console password must be configured on the switch.

C. Telnet must be disabled on the switch.

D. The switch must be running a k9 (crypto) IOS image.

E. The ip domain-name command must be configured on the switch.

Question 69

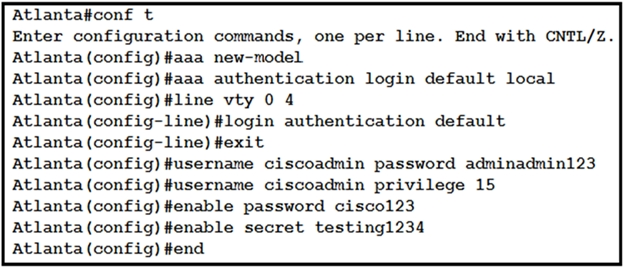

Refer to the exhibit. Which password must an engineer use to enter the enable mode?

A. adminadmin123

B. cisco123

C. default

D. testing1234

Question 70

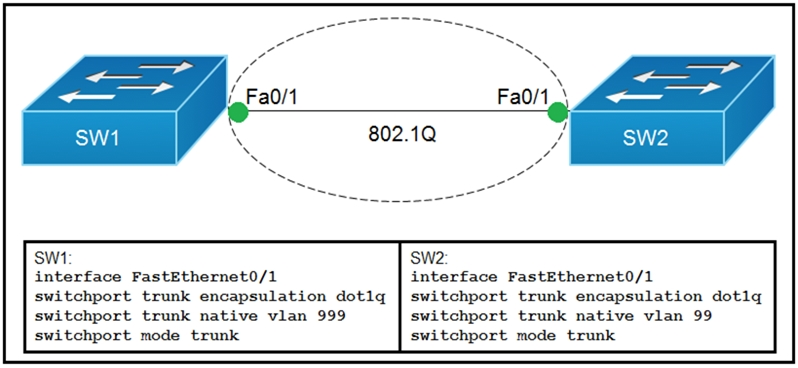

Refer to the exhibit. Which action do the switches take on the trunk link?

A. The trunk does not form, and the ports go into an err-disabled status.

B. The trunk forms, but the mismatched native VLANs are merged into a single broadcast domain.

C. The trunk forms, but VLAN 99 and VLAN 999 are in a shutdown state.

D. The trunk does not form, but VLAN 99 and VLAN 999 are allowed to traverse the link.
