Question 1

What are two differences between optical-fiber cabling and copper cabling? (Choose two.)

Select all that apply

A. A BNC connector is used for fiber connections

B. The glass core component is encased in a cladding

C. The data can pass through the cladding

D. Light is transmitted through the core of the fiber

E. Fiber connects to physical interfaces using RJ-45 connections

Question 2

How do AAA operations compare regarding user identification, user services, and access control?

A. Authorization provides access control, and authentication tracks user services

B. Authentication identifies users, and accounting tracks user services

C. Accounting tracks user services, and authentication provides access control

D. Authorization identifies users, and authentication provides access control

Question 3

Which statement about Cisco Discovery Protocol is true?

A. It is a Cisco-proprietary protocol.

B. It runs on the network layer.

C. It can discover information from routers, firewalls, and switches.

D. It runs on the physical layer and the data link layer.

Question 4

Which two circumstances can prevent two routers from establishing an OSPF neighbor adjacency? (Choose two.)

Select all that apply

A. mismatched autonomous system numbers

B. an ACL blocking traffic from multicast address 224.0.0.10

C. mismatched process IDs

D. mismatched hello timers and dead timers

E. use of the same router ID on both devices

Question 5

If all OSPF routers in a single area are configured with the same priority value, what value does a router use for the OSPF router ID in the absence of a loopback interface?

A. the IP address of the first Fast Ethernet interface

B. the IP address of the console management interface

C. the highest IP address among its active interfaces

D. the lowest IP address among its active interfaces

E. the priority value until a loopback interface is configured

Question 6

The OSPF Hello protocol performs which of the following tasks? (Choose two.)

Select all that apply

A. It provides dynamic neighbor discovery.

B. It detects unreachable neighbors in 90 second intervals.

C. It maintains neighbor relationships.

D. It negotiates correctness parameters between neighboring interfaces.

E. It uses timers to elect the router with the fastest links as the designated router.

F. It broadcasts hello packets throughout the internetwork to discover all routers that are running OSPF.

Question 7

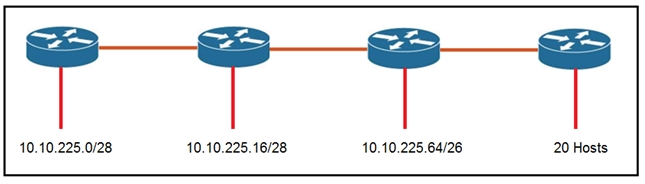

Refer to the exhibit. An engineer must add a subnet for a new office that will add 20 users to the network. Which IPv4 network and subnet mask combination does the engineer assign to minimize wasting addresses?

A. 10.10.225.48 255.255.255.240

B. 10.10.225.32 255.255.255.240

C. 10.10.225.48 255.255.255.224

D. 10.10.225.32 255.255.255.224

Question 8

Which command is used to enable LLDP globally on a Cisco IOS ISR?

Question 9

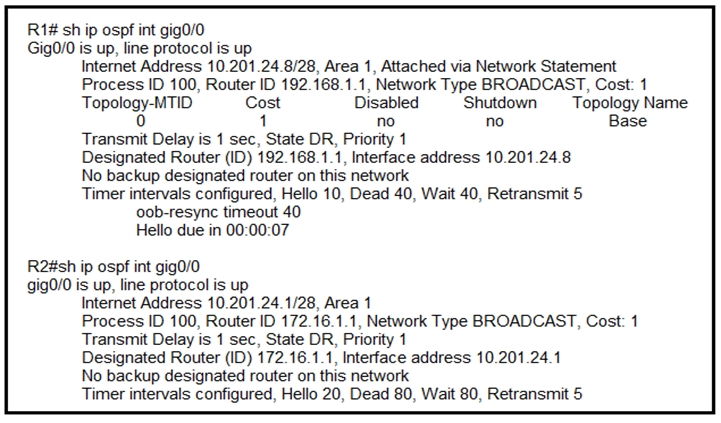

Refer to the exhibit. What action establishes the OSPF neighbor relationship without forming an adjacency?

A. modify hello interval

B. modify process ID

C. modify priority

D. modify network type

Question 10

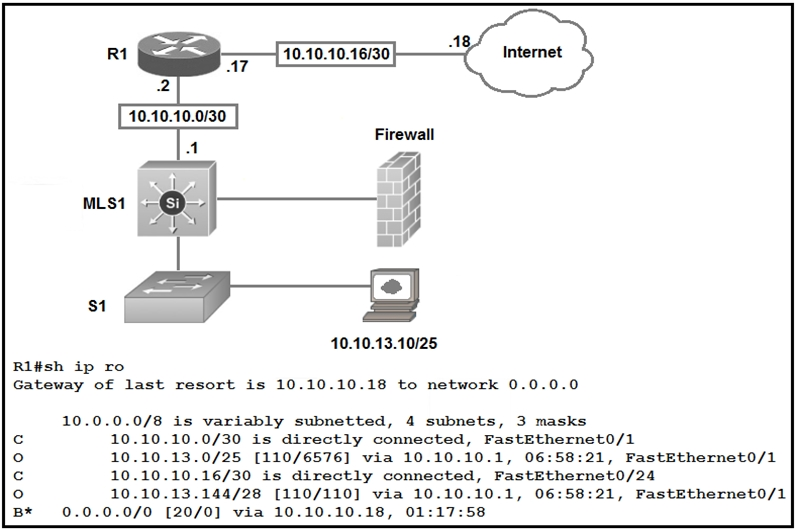

Refer to the exhibit. Which type of route does R1 use to reach host 10.10.13.10/32?

A. default route

B. network route

C. host route

D. floating static route
