Configuring an AG is nearly the same in Azure as it is on premises as are most of the considerations, such as how to initialize secondary replicas. Most of the Azure-specific considerations were discussed in other examples, such as needing an ILB. Same as the WSFC itself, you cannot reserve the listener’s IP address in Azure so you need to ensure something else does not come along and grab it otherwise there could be a conflict on the network, which in turn could cause availability headaches.

Creating an AG in Azure is the same as it is on premises. SQL Server Management Studio (SSMS), T-SQL, or PowerShell can be used.

The only difference is that whether or not you create the listener as part of the initial AG configuration, as the listener requires the creation of an Azure load balancer and has some additional configuration in the WSFC related to the load balancer.

Create an Internal Azure load balancer

Once the listener is created, an internal load balancer (ILB) must be used. Without configuring an ILB, applications, end users, administrators, and others cannot use the listener unless they were connected to the VM that hosts an AG’s primary replica.

You can use a basic or a standard load balancer depending on your preference or configuration. Deployments using Availability Zones require the use of a standard load balancer.

The listener IP address and the port used for the listener are what is configured as part of the load balancer. A single load balancer supports more than one IP address, so depending on your standards, you may not need a different load balancer for each AG configured on those nodes.

Another consideration for the load balancer is the probe port. Without the probe port, the listener will not work properly as it is not enough just to create the load balancer. Each IP address that will use the load balancer requires a unique probe port. If there are going to be two listeners, there must be two probe ports. Probe ports are high numbers such as 59999.

https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-overview

The probe port is set on the IP address(es) associated with the listener with the following syntax:

1. PowerShell
2. Get-ClusterResource IPAddressResourceNameForListener | Set-ClusterParameter ProbePort PortNumber

Adding the probe port will require a stop and start of the IP address of the listener, which will also temporarily cause the AG to be brought offline, so it is best to get this configured before deploying in production.

If you have a multi-subnet configuration, a load balancer will need to be configured in each subnet (whether or not the other subnet is deployed to different region) and the probe port for that region associated with the IP resource for that subnet in the WSFC.

Without directly connecting to the listener, the only way to ensure that the listener is configured correctly is to use the PowerShell cmdlet Test-NetConnection with the specific port. The syntax is as follows:

1. PowerShell
2. Test-NetConnection NameOrIPAddress -Port PortNumber

You should run this command from somewhere other than the VM that is hosting the primary replica.

Some environments may also require that the IP address for the WSFC and selected ports (such as 445) must be accessible for administration or other purposes, which mean configuring those as part of the same or a different load balancer.

Once the load balancer is confirmed to be working, you can begin to test AG failover and connectivity to the AG via the listener.

Distributed Availability Groups

Planning for and configuring a distributed AG is the same on premises as it is in Azure, with any Azure-specific considerations for the individual AGs. The main difference between an on-premises configuration and an Azure configuration for a distributed AG is that as part of the load balancer configuration in each region, the endpoint port for the AG needs to be added. The default port is 5022.

https://docs.microsoft.com/en-us/azure/azure-sql/virtual-machines/windows/availability-group-azure-portal-configure?tabs=azure-cli

Understanding recovery time and recovery point objectives are crucial to your high availability and disaster recovery (HADR) plan as they are the foundation for any availability solution.

Recovery Time Objective

Recovery Time Objective (RTO) is the maximum amount of time available to bring resources online after an outage or problem. If that process takes longer than the RTO, there could be consequences such as financial penalties, work not able to be done, and so on. RTO can be specified for the whole solution, which includes all resources, as well as for individual components such as SQL Server instances and databases.

Recovery Point Objective

Recovery Point Objective (RPO) is the point in time to which a database should be recovered and equates to the maximum amount of data loss that the business is willing to accept. For example, suppose an IaaS VM containing SQL Server experiences an outage at 10:00 AM and the databases within the SQL Server instance have an RPO of 15 minutes. No matter what feature or technology is used to bring back that instance and its databases, the expectation is that there will be at most 15 minutes worth of data lost. That means the database can be restored to 9:45 AM or later to ensure minimal to no data loss meeting that stated RPO. There may be factors that determine if that RPO is achievable.

Defining Recovery Time and Recovery Point Objectives

RTOs and RPOs are driven by business requirements but are also based on various technological and other factors, such as the skills and abilities of the administrators (not just DBAs). While the business may want no downtime or zero data loss, that may not be realistic or possible for a variety of reasons. Determining your solution’s RTO and RPO should be an open and honest discussion between all parties involved.

One of the aspects crucial for both RTO and RPO is knowing the cost of downtime. If you define that number and the overall effect being down or unavailable has to the business, it is easier to define solutions. For example, if the business can lose $10,000 per hour or could be fined by a government agency if something could not be processed, that is a measurable way to help define RTO and RPO. Spending on the solution should be proportional to the amount, or the cost, of downtime. If your HADR solution costs $X, but you wind up only being affected for a few seconds instead of hours or days when a problem occurs, it has paid for itself.

From a non-business standpoint, RTO should be defined at a component level (for example, SQL Server) as well as for the entire application architecture. The ability to recover from an outage is only as good as its weakest link. For example, if SQL Server and its databases can be brought online in five minutes but it takes application servers 20 minutes to do the same, the overall RTO would be 20 minutes, not five. The SQL Server environment could still have an RTO of five minutes; it still will not change the overall time to recover.

RPO deals specifically with data and directly influences the design of any HADR solution as well as administrative policies and procedures. The features used must support both the RTO and RPOs that are defined. For example, if transaction log backups are scheduled every 30 minutes but there is a 15-minute RPO, a database could only be recovered to the last transaction log backup available which in a best case would be 30 minutes ago. This timing assumes no other issues and the backups have been tested and are known to be good. While it is hard to test every backup generated for each database in your environment, backups are just files on a file system. Without doing at least periodic restores, there is no guarantee they are good. Running checks during the backup process can give you some degree of confidence.

The specific features used, such as an Always On Availability Group (AG) or an Always On Failover Cluster Instance (FCI) will also affect your RTOs and RPOs. Depending on how the features are configured, IaaS or PaaS solutions may or may not automatically failover to another location, which could result in longer downtime. By defining RTO and RPO, the technical solution that supports that requirement can be designed knowing the allowances for time and data loss. If those wind-up being unrealistic, RTOs and RPOs must be adjusted accordingly. For example, if there is a desired RTO of two hours but a backup will take three hours to copy to the destination server for restoring, the RTO is already missed. These types of factors must be accounted for when determining your RTOs and RPOs.

There should be RTOs and RPOs defined for both HA and DR. HA is considered a more localized event that can be recovered from more easily. One example of high availability would be an AG automatically failing over from one replica to another within an Azure region. That may take seconds, and at that point, you would need to ensure that the application can connect after the failover. SQL Server’s downtime would be minimal. A local RTO or RPO may potentially be measured in minutes depending on the critical nature of the solution or system.

DR would be akin to bringing up a whole new data centre. There are lots of pieces to the puzzle; SQL Server is just one component. Getting everything online may take hours or longer. This is why the RTOs and RPOs are separate. Even if many the technologies and features used for HA and DR are the same, the level of effort and time involved may not be.

All RTOs and RPOs should be formally documented and revised periodically or as needed. Once they are documented, you can then consider what technologies and features you may use for the architecture.

https://docs.microsoft.com/en-us/azure/architecture/framework/resiliency/backup-and-recovery

Monitoring for blocking problems

Identifying blocking problem can be troublesome as they can be sporadic in nature. There is a DMV called sys.dm_tran_locks, which can be joined with sys.dm_exec_requests in order to provide further information on locks that each session is holding. A better way to monitor for blocking problems is to do so on an ongoing basis using the Extended Events engine.

Blocking problems typically fall into two categories:

• Poor transactional design. A transaction that has no COMMIT TRANSACTION will never end. While that is a very simple example, trying to do too much work in a single transaction or having a distributed transaction which uses a linked server connection, can lead to unpredictable performance.

• Long running transactions caused by schema design. Frequently this can be an update on a column with a missing index, or poorly designed update query.

Monitoring for locking-related performance problems allows you to quickly identity performance degradation related to locking.

https://docs.microsoft.com/en-us/azure/azure-monitor/platform/alerts-troubleshoot

In addition to supporting encryption at rest through transparent data encryption, SQL Server supports encrypting data within columns using Always Encrypted. Once data is encrypted, the application accessing the database must have the correct certificate in order to view the plain text values of the data.

Always Encrypted allows for the encryption of data within the client application. This encryption happens automatically based on the settings within the Microsoft SQL Server database, which tell the application what the encryption settings on the database column are. Always Encrypted is based on a master encryption key as well as a column encryption key. Having both keys allows each column to be encrypted using a different encryption key for maximum data protection. Always Encrypted has a variety of key stores that can store the certificate used by encryption.

Secure enclaves

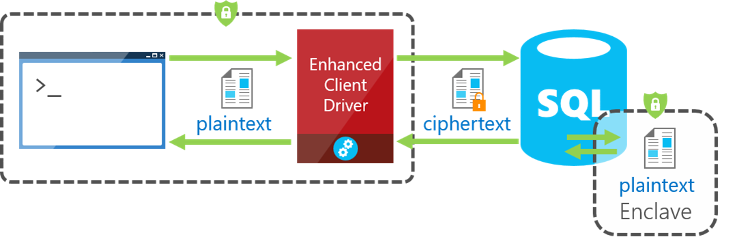

Starting with SQL Server 2019, Always Encrypted supports a feature called secure enclaves, which allows more robust querying of encrypted data. A secure enclave is a secured region of memory within the SQL Server process that acts as a trusted execution environment for processing encrypted data. This enclave appears as a black box to SQL Server, and it is not possible to view any data or code, even with a debugger. The image below shows the architecture of this process:

Secure enclaves allow pattern matching and range comparison on data that is stored in columns using Randomized encryption.

https://docs.microsoft.com/en-us/azure/azure-sql/database/always-encrypted-azure-key-vault-configure?tabs=azure-powershell

The Business Critical tier will enable them to get a readable secondary, and an auto-failover group can help them scale over two regions.

https://docs.microsoft.com/en-us/learn/modules/azure-sql-case-studies/2-scenario-1

Azure Portal

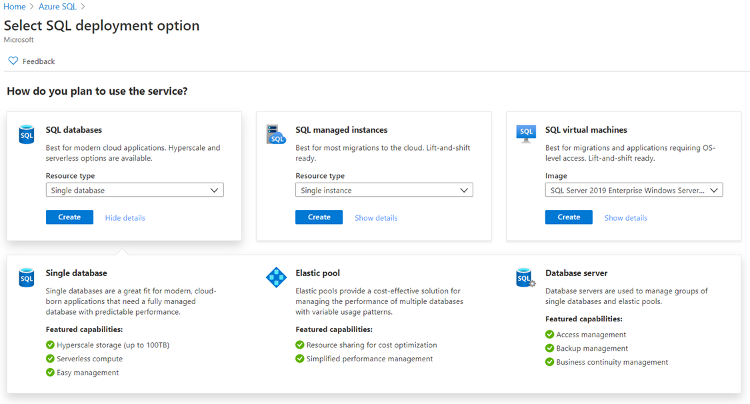

The Azure Portal provides a broad set of features for Azure SQL resources, including virtual machines, managed instances, and databases. Through the Azure Portal, you can deploy resources, administer resources, and even connect to databases and run queries.

https://portal.azure.com/

Rebuilding an index updates the statistics on the index.

https://docs.microsoft.com/en-us/azure/synapse-analytics/sql-data-warehouse/sql-data-warehouse-tables-index

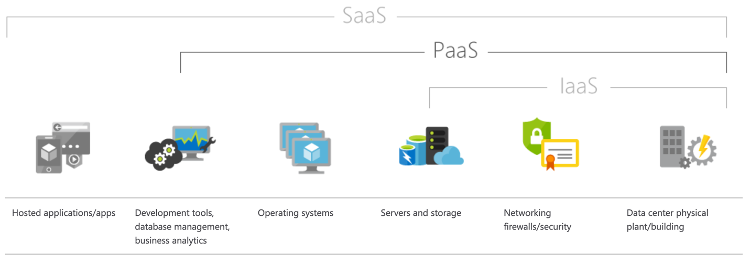

Platform as a Service (PaaS) provides a complete development and deployment environment in the cloud, which can be used for simple cloud-based applications as well as for advanced enterprise applications.

As shown in the image above, PaaS includes cloud provided operating system and management of your solution. For example, in Azure SQL Database and Azure SQL Managed Instance, the high availability, OS and SQL Server features, and backups are all provided by the Azure platform.

Active geo-replication

Geo-replication is a business continuity feature that asynchronously replicates a database to up to four secondary replicas. As transactions are committed to the primary (and its replicas within the same region), the transactions are sent to the secondaries to be replayed. Because this communication is done asynchronously, the calling application does not have to wait for the secondary replica to commit the transaction prior to SQL Server returning control to the caller.

The secondary databases are readable and can be used to offload read-only workloads, thus freeing up resources for transactional workloads on the primary or placing data closer to your end users. Furthermore, the secondary databases can be in the same region as the primary or in another Azure region.

With geo-replication you can initiate a failover either manually by the user or from the application. If a failover occurs, you potentially will need to update application connection strings to reflect the new endpoint of what is now the primary database.

Failover Groups

Failover groups are built on top of the technology used in geo-replication, but provide a single endpoint for connection. The major reason for using failover groups is that the technology provides endpoints, which can be utilized to route traffic to the appropriate replica. Your application can then connect after a failover without connection string changes.

https://docs.microsoft.com/en-us/azure/azure-sql/database/automated-backups-overview?tabs=single-database

One of the key benefits to columnstore indexes is the ability to compress your data. In addition to columnstore compression, SQL Server offers a few other options for compressing data. While SQL Server still stores compressed data on 8 KB pages, when the data is compressed, more rows of data can be stored on a given page, which allows the query to read fewer pages.

Reading fewer pages has a twofold benefit:

• it reduces the amount of physical I/O performed

• it allows more rows to be stored in the buffer pool, making more efficient use of memory

The tradeoffs to compression are that it does require a small amount of CPU overhead, however in most cases the storage IO benefits far outweigh any additional processor usage.

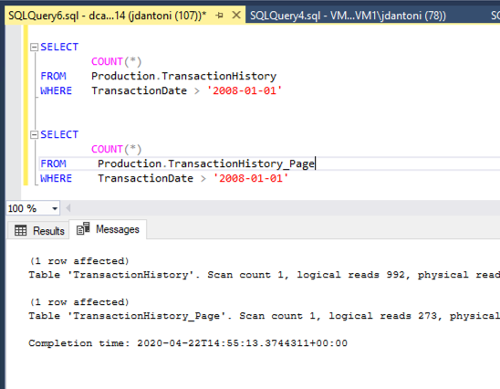

The image above shows this performance benefit. These tables have same underlying indexes; the only difference is that the clustered and nonclustered indexes on the Production.TransactionHistory_Page table are page compressed. The query against the page compressed object performs 72% fewer logical reads than the query that uses the uncompressed objects.

Compression is implemented in SQL Server at the object level. Each index or table can be compressed individually, and you have the option of compressing partitions within a partitioned table or index. You can evaluate how much space you will save by using the sp_estimate_data_compression_savings system stored procedure. Prior to SQL Server 2019, this procedure did not support columnstore indexes, or columnstore archival compression.

Row compression

Row compression is fairly basic and does not incur much overhead; however, it does not offer the same amount of compression (measured by the percentage reduction in storage space required) that page compression may offer. Row compression basically stores each value in each column in a row in the minimum amount of space needed to store that value. It uses a variable-length storage format for numeric data types like integer, float, and decimal, and it stores fixed-length character strings using variable length format.

Page compression

Page compression is a superset of row compression, as all pages will initially be row compressed prior to applying the page compression. Then a combination of techniques called prefix and dictionary compression are applied to the data. Prefix compression eliminates redundant data in a single column, storing pointers back to the page header. After that step, dictionary compression searches for repeated values on a page and replaces them with pointers, further reducing storage. The more redundancy in your data, the greater the space savings when you compress your data.

Columnstore archival compression

Columnstore objects are always compressed, however, they can be further compressed using archival compression, which uses the Microsoft XPRESS compression algorithm on the data. This type of compression is best used for data that is infrequently read, but needs to be retained for regulatory or business reasons. While this data is further compressed, the CPU cost of decompression tends to outweigh any performance gains from I/O reduction.

https://docs.microsoft.com/en-us/sql/relational-databases/data-compression/data-compression?view=sql-server-ver15

Virtual machine families

When deploying to an Azure virtual machine, there are several series, or “families”, of virtual machine sizes that can be selected. Each series is a combination of memory, CPU, and storage that meets certain requirements. For example, the series that are compute optimized have a higher CPU to memory ratio. Having multiple options allows you to select an appropriate hardware configuration for the expected workload. The following six series each have various sizes available, the details of which are fully described in the Azure portal when you choose the option to select your VM size.

General purpose - These VMs provide a balanced ration of CPU to memory. This VM class is ideal for testing and development, small to medium-sized database servers, and web servers with a low to medium amount of traffic.

Compute optimized - Compute optimized VMs have a high CPU-to-memory ratio and are good for web servers with a medium amount of traffic, network appliances, batch processes, and application servers. These VMs can also support machine learning workloads that can't benefit from GPU-based VMs.

Memory optimized - These VMs provide high memory-to-CPU ratio. These VMs cover a broad range of CPU and memory options (all the way up to 4 TB of RAM) and are well suited for most database workloads.

Storage optimized - Storage optimized VMs provide fast, local, NVMe storage that is ephemeral. They are good candidates for scale-out data workloads such as Cassandra. It is possible to use them with SQL Server, however since the storage is ephemeral, you need to ensure you configure data protection using a feature like Always On Availability Groups or Log Shipping.

GPU - Azure VMs with GPUs are targeted at two main types of workloads—naturally graphics processing operations like video rendering and processing, but also massively parallel machine learning workloads that can take advantage of GPUs.

High performance compute - High Performance Compute workloads support applications that can scale horizontally to thousands of CPU cores. This support is provided by high-performance CPU and remote direct memory access (RDMA) networking that provides low latency communications between VMs.

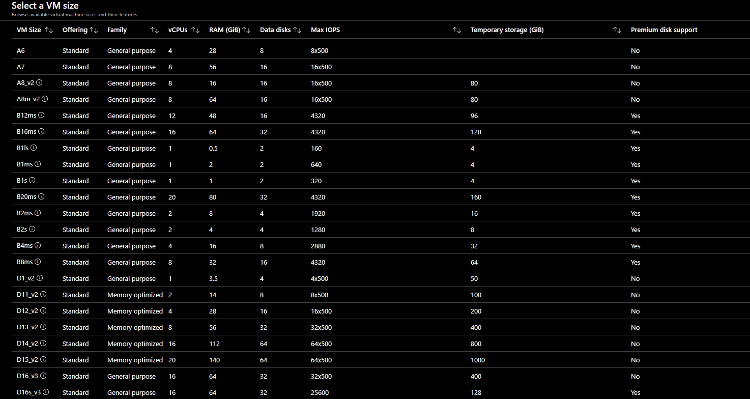

The easiest way to see the sizing options within each series is through the Azure portal. From the blade for creating a VM, you can click the option to “Select Size” and see a list.

https://azure.microsoft.com/en-us/pricing/details/virtual-machines/series/
