To create a WSFC properly in Azure, you cannot use the Wizard in Failover Cluster Manager for FCIs or AGs deployed using Windows Server 2016 and earlier. Due to the DHCP issue mentioned earlier, currently the only way to create the WSFC is to use PowerShell and specify the IP address.

For all availability configurations of availability groups (AGs), an underlying cluster is required, whether or not it uses AD DS. Considerations for Always On availability groups in Azure.

Configuring an AG is nearly the same in Azure as it is on-premises as are most of the considerations, such as how to initialize secondary replicas. Same as the WSFC itself, you cannot reserve the listener’s IP address in Azure so you need to ensure something else does not come along and grab it otherwise there could be a conflict on the network, which in turn could cause availability headaches.

Do not place any permanent database on the ephemeral storage. All virtual machines (VMs) that are participating in an AG should have the same storage configuration. You must size disks appropriately for performance depending on the application workload.

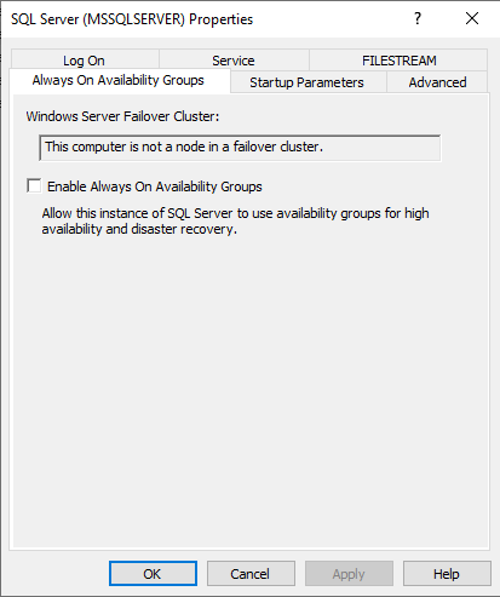

Before an AG can be configured, the AG feature must be enabled. This can be done in SQL Server Configuration Manager as shown in the image below or via PowerShell with the cmdlet Enable-SqlAlwaysOn. Enabling the AG feature will require a stop and start of the SQL Server service.

https://docs.microsoft.com/en-us/azure/azure-sql/virtual-machines/windows/availability-group-manually-configure-tutorial

The SELECT * FROM sys.dm_user_db_resource_governance query will return the configuration and capacity settings used by resource governance mechanisms in the current database or elastic pool.

https://docs.microsoft.com/en-us/sql/relational-databases/system-dynamic-management-views/sys-dm-user-db-resource-governor-azure-sql-database?view=azuresqldb-current

Understanding recovery time and recovery point objectives are crucial to your high availability and disaster recovery (HADR) plan as they are the foundation for any availability solution.

Recovery Time Objective

Recovery Time Objective (RTO) is the maximum amount of time available to bring resources online after an outage or problem. If that process takes longer than the RTO, there could be consequences such as financial penalties, work not able to be done, and so on. RTO can be specified for the whole solution, which includes all resources, as well as for individual components such as SQL Server instances and databases.

Recovery Point Objective

Recovery Point Objective (RPO) is the point in time to which a database should be recovered and equates to the maximum amount of data loss that the business is willing to accept. For example, suppose an IaaS VM containing SQL Server experiences an outage at 10:00 AM and the databases within the SQL Server instance have an RPO of 15 minutes. No matter what feature or technology is used to bring back that instance and its databases, the expectation is that there will be at most 15 minutes worth of data lost. That means the database can be restored to 9:45 AM or later to ensure minimal to no data loss meeting that stated RPO. There may be factors that determine if that RPO is achievable.

Defining Recovery Time and Recovery Point Objectives

RTOs and RPOs are driven by business requirements but are also based on various technological and other factors, such as the skills and abilities of the administrators (not just DBAs). While the business may want no downtime or zero data loss, that may not be realistic or possible for a variety of reasons. Determining your solution’s RTO and RPO should be an open and honest discussion between all parties involved.

One of the aspects crucial for both RTO and RPO is knowing the cost of downtime. If you define that number and the overall effect being down or unavailable has to the business, it is easier to define solutions. For example, if the business can lose $10,000 per hour or could be fined by a government agency if something could not be processed, that is a measurable way to help define RTO and RPO. Spending on the solution should be proportional to the amount, or the cost, of downtime. If your HADR solution costs $X, but you wind up only being affected for a few seconds instead of hours or days when a problem occurs, it has paid for itself.

From a non-business standpoint, RTO should be defined at a component level (for example, SQL Server) as well as for the entire application architecture. The ability to recover from an outage is only as good as its weakest link. For example, if SQL Server and its databases can be brought online in five minutes but it takes application servers 20 minutes to do the same, the overall RTO would be 20 minutes, not five. The SQL Server environment could still have an RTO of five minutes; it still will not change the overall time to recover.

RPO deals specifically with data and directly influences the design of any HADR solution as well as administrative policies and procedures. The features used must support both the RTO and RPOs that are defined. For example, if transaction log backups are scheduled every 30 minutes but there is a 15-minute RPO, a database could only be recovered to the last transaction log backup available which in a best case would be 30 minutes ago. This timing assumes no other issues and the backups have been tested and are known to be good. While it is hard to test every backup generated for each database in your environment, backups are just files on a file system. Without doing at least periodic restores, there is no guarantee they are good. Running checks during the backup process can give you some degree of confidence.

The specific features used, such as an Always On Availability Group (AG) or an Always On Failover Cluster Instance (FCI) will also affect your RTOs and RPOs. Depending on how the features are configured, IaaS or PaaS solutions may or may not automatically failover to another location, which could result in longer downtime. By defining RTO and RPO, the technical solution that supports that requirement can be designed knowing the allowances for time and data loss. If those wind-up being unrealistic, RTOs and RPOs must be adjusted accordingly. For example, if there is a desired RTO of two hours but a backup will take three hours to copy to the destination server for restoring, the RTO is already missed. These types of factors must be accounted for when determining your RTOs and RPOs.

There should be RTOs and RPOs defined for both HA and DR. HA is considered a more localized event that can be recovered from more easily. One example of high availability would be an AG automatically failing over from one replica to another within an Azure region. That may take seconds, and at that point, you would need to ensure that the application can connect after the failover. SQL Server’s downtime would be minimal. A local RTO or RPO may potentially be measured in minutes depending on the critical nature of the solution or system.

DR would be akin to bringing up a whole new data centre. There are lots of pieces to the puzzle; SQL Server is just one component. Getting everything online may take hours or longer. This is why the RTOs and RPOs are separate. Even if many the technologies and features used for HA and DR are the same, the level of effort and time involved may not be.

All RTOs and RPOs should be formally documented and revised periodically or as needed. Once they are documented, you can then consider what technologies and features you may use for the architecture.

https://docs.microsoft.com/en-us/azure/architecture/framework/resiliency/backup-and-recovery

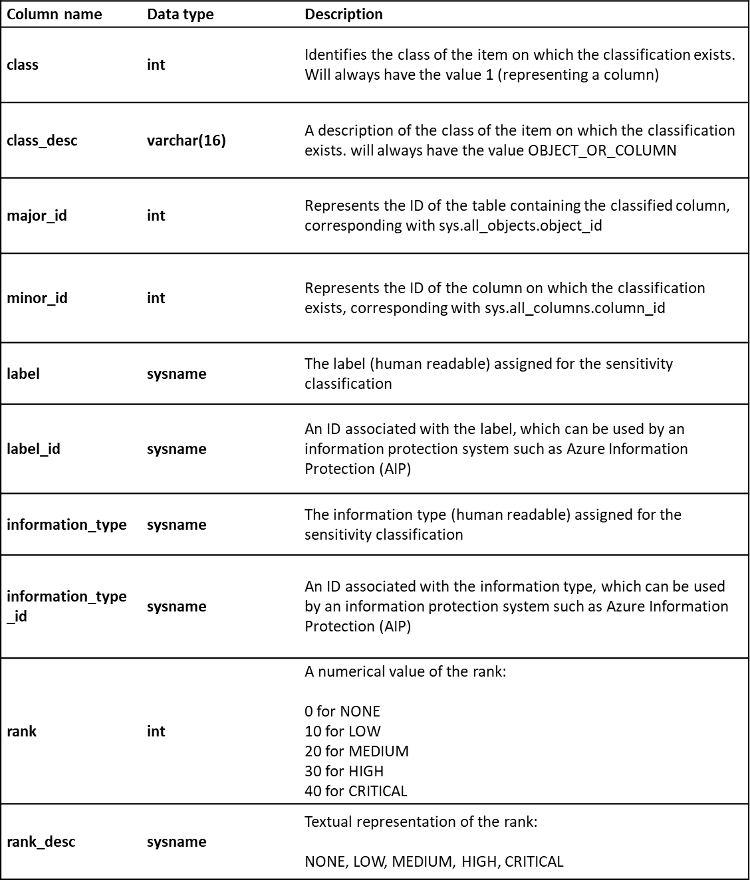

Data from data classification in SQL Server 2019 is stored in the sys.sensitivity_classifications catalogue view.

https://docs.microsoft.com/en-us/sql/relational-databases/system-catalog-views/sys-sensitivity-classifications-transact-sql?view=sql-server-ver15

Extended events are a lightweight and very extensive diagnostic system that is built into SQL Server and Azure SQL Database and managed instance. Extended events allow you to collect additional information about the internal operations of your databases. Historically, DBAs used a tool call Profiler to trace inbound queries and gather execution plans to identity to problematic queries and their execution plans. Extended events build on the functionality of SQL Server Profiler by allowing you to trace queries and by exposing additional data (events) that you can monitor.

Some examples of issues you might troubleshoot with Extended Events include:

• Troubleshooting blocking and deadlocking performance issues

• Identifying long-running queries

• Monitoring Data Definition Language (DDL) operations

• Logging missing column statistics

• Observing Memory Pressure in your database

• Long-running physical I/O operations

The extended event framework also allows you to use filters to limit the amount of data you collect in order to reduce the overhead of data collection, and allows you to more easily identity your performance problem by targeting your focus onto specific areas.

Extended events cover the full surface area of SQL Server, and are divided into four channels, which define the audience of an event.

• Admin - Admin events are targeted for end users and administrators. The events included indicate a problem within a well-defined set of actions an administrator can take. An example of this is the generation of an XML deadlock report to help identity the root cause of the deadlock.

• Operational - Operational events are used for analysis and diagnostics or common problems. These events can be used to trigger an action or task based on an occurrence of the event. An example of an operational event would be a database in an Availability Group changing state, which would indicate a failover.

• Analytic - Analytic events are typically related to performance events and are published in high volume. Tracing stored procedure or query execution would be an example of an analytic event.

• Debug - Debug events are not necessarily fully documented and you should only use them when troubleshooting in conjunction with Microsoft support.

Events are added to sessions, which can host multiple events. Typically, multiple events are grouped together in a session to capture a related set of information.

https://docs.microsoft.com/en-us/azure/azure-sql/database/xevent-db-diff-from-svr

Bulk loading refers to the way large numbers of rows are added to a data store. It is the most performant way to move data into a columnstore index because it operates on batches of rows. Bulk loading fills rowgroups to maximum capacity and compresses them directly into the columnstore. Only rows at the end of a load that don't meet the minimum of 102,400 rows per rowgroup go to the deltastore.

The minimum number of rows to bulk insert into a columnstore index is 102,400; fewer rows will use a normal insert operation.

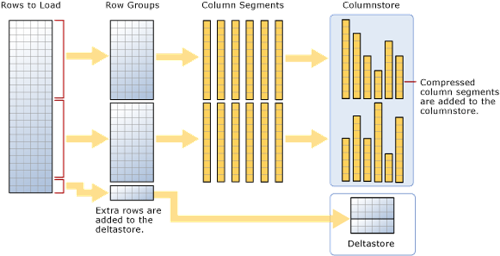

As the diagram suggests, a bulk load:

• Does not pre-sort the data. Data is inserted into rowgroups in the order it is received.

• If the batch size is >= 102400, the rows are directly into the compressed rowgroups. It is recommended that you choose a batch size >=102400 for efficient bulk import because you can avoid moving data rows to a delta rowgroups before the rows are eventually moved to compressed rowgroups by a background thread, Tuple mover (TM).

• If the batch size < 102,400 or if the remaining rows are < 102,400, the rows are loaded into delta rowgroups.

https://docs.microsoft.com/en-us/sql/relational-databases/indexes/columnstore-indexes-data-loading-guidance?view=sql-server-ver15

Azure Defender

Azure Defender is a unified package for advanced SQL security capabilities. It provides a single go-to location for enabling and managing two main capabilities:

• Vulnerability Assessment

• Advanced Threat Protection

Vulnerability Assessment

At the highest level, SQL Vulnerability Assessment is a scanning service that provides visibility into your security state and then provides actionable steps to address any potential concerns. When you configure periodic recurring scans, you're enabling the service to scan your databases every seven days and check for any vulnerabilities. You can then choose to send those reports to the admins, subscription owners, or anyone else who might need to be notified of changes. For this service to operate, you have to specify a storage account where the results will be stored.

Advanced Threat Protection

With Advanced Threat Protection, you can detect and respond to potential threats as they occur by receiving security alerts on anomalous activities. Advanced Threat Protection applies advanced monitoring and machine learning technologies to detect whether any of the following threats have occurred:

• SQL injection

• SQL injection vulnerability

• Data exfiltration

• Unsafe action

• Brute force attempt

• Anomalous client login

https://azure.microsoft.com/en-us/services/azure-defender/

For all availability configurations of availability groups (AGs), an underlying cluster is required. There are many aspects of setting up a cluster that you need to be aware of.

Considerations for a Windows Server Failover Cluster in Azure

Deploying a Windows Server Failover Cluster (WSFC) in Azure is similar to configuring one on premises.

One of the most important aspects is deciding what to use for a witness resource. Witness is a core component of the quorum mechanism. Quorum is what helps ensure that everything in the WSFC stays up and running. If you lose quorum, the WSFC will go down taking an AG or FCI with it. The witness resource can be a disk, file share (SMB 2.0 or later), or cloud witness. It is recommended that you use a cloud witness as it is fully Azure-based, especially for solutions that will span multiple Azure regions or are hybrid. The cloud witness feature is available in Windows Server 2016 and later.

The next consideration is the Microsoft Distributed Transaction Coordinator (DTC or MSDTC). Some applications use it, but the majority of applications do not. If you require DTC and are deploying an AG or FCI, you should cluster DTC. Clustering DTC requires a shared disk to work properly even though you may not require one otherwise, as in the case of an AG.

Most WSFC deployments require the use of both AD DS and DNS; FCIs always do. AGs can be configured without requiring AD DS but still needing DNS. In Windows Server 2016, there is a variant of a WSFC called a Workgroup Cluster, which can be used with AGs only.

The WSFC itself needs a unique name in the domain (and DNS) and requires an object in AD DS called the cluster name object (CNO). Anything created in context of the WSFC that has a name will require a unique name, as well as at least one IP address. If the configuration will stay in a single region, IP addresses will be in a single subnet. If the WSFC will span multiple regions, more than one IP address will be associated with the WSFC, as well as an AG if it spans multiple regions as part of the WSFC.

A typical Azure-based WSFC will only require a single virtual network card (vNIC). Unlike the setup for an on-premises physical or virtual server, the IP address for the vNIC has to be configured in Azure, not in the VM. That means inside the VM it will show up as a dynamic (DHCP) address. This is expected, however cluster validation will generate a warning that can safely be ignored.

Considerations for the WSFC’s IP address is also different from on premises. There is no way to reserve the IP address at the Azure level since it is fully maintained within the guest configuration. This means that if subsequent resources that use an IP address in Azure use DHCP, you must check for conflicts.

https://azuremarketplace.microsoft.com/en-us/marketplace/apps/enterprise-ethereum-alliance.quorum-demo?tab=Overview

Access admin can add users to the database and create them.

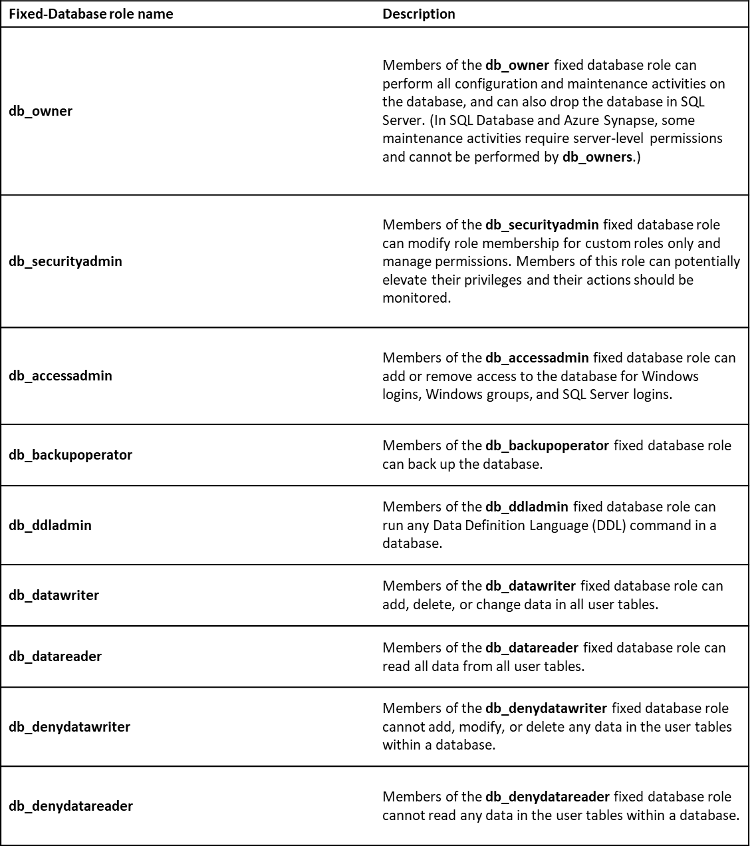

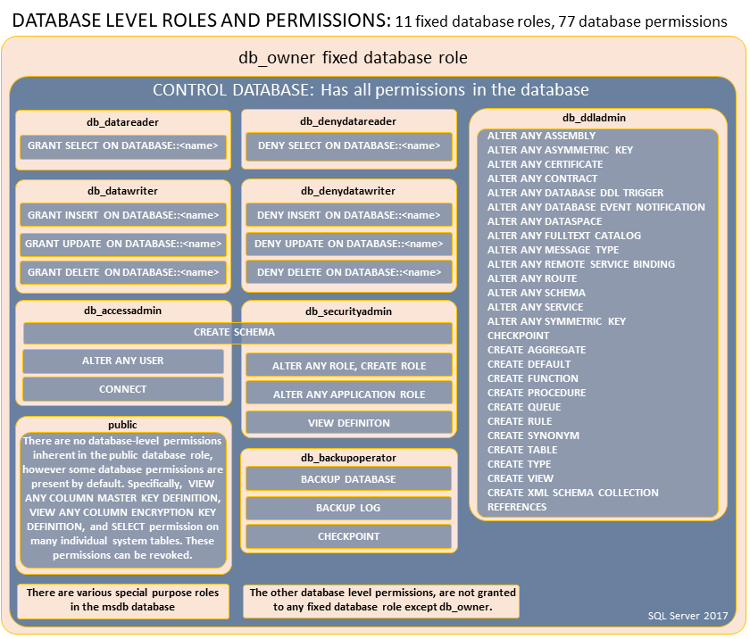

The following table shows the fixed-database roles and their capabilities. These roles exist in all databases. Except for the public database role, the permissions assigned to the fixed-database roles cannot be changed.

https://docs.microsoft.com/en-us/sql/relational-databases/security/authentication-access/database-level-roles

Service tier

When it is time to choose a service tier for performance and availability, Microsoft recommends you start with the General Purpose tier and adjust as needed.

Three tiers are available in the vCore model:

• General Purpose: Suitable for most business workloads. Offers budget-oriented, balanced, and scalable compute and storage options.

• Business Critical: Suitable for business applications with low-latency response requirements. Offers the highest resilience to failures by using several isolated replicas. This tier is the only one that can use In-Memory OLTP to improve performance.

• Hyperscale: Suitable for business workloads with highly scalable storage (100 TB+) and read-scale requirements. From a performance and cost perspective, this tier falls between General Purpose and Business Critical. Hyperscale is currently available only for single databases in Azure SQL Database.

If you choose General Purpose and the vCore-based model, you have an additional decision to make regarding the compute that you pay for:

• Provisioned compute is meant for more regular usage patterns with higher average compute utilization over time, or for multiple databases that use elastic pools.

• Serverless compute is meant for intermittent, unpredictable usage with lower average compute utilization over time. Serverless has autopause and resume capabilities with a time delay that you set. When your database is paused, you pay only for storage.

https://docs.microsoft.com/en-us/azure/azure-sql/database/service-tiers-general-purpose-business-critical
