Cisco CCNA 200-301 (V1.1) Practice Questions

The latest changes and updates from the administration for this exam.

verified

Latest Update: Jun 22 2026

All questions are working fine.

All Questions (375)bookmarkBookmarked (0)

All375Show all accessible questions in this exam.Missed375Questions you haven't attempted yet.Incorrect0Questions you answered incorrectly on your last attempt.

Question 161

When a floating static route is configured, which action ensures that the backup route is used when the primary route fails?

A. The administrative distance must be higher on the primary route so that the backup route becomes secondary.

B. The default-information originate command must be configured for the route to be installed into the routing table.

C. The floating static route must have a lower administrative distance than the primary route so it is used as a backup.

D. The floating static route must have a higher administrative distance than the primary route so it is used as a backup

Question 162

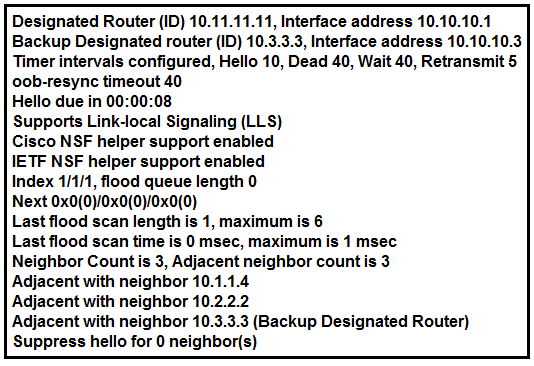

Refer to the exhibit. The show ip ospf interface command has been executed on R1. How is OSPF configured?

A. A point-to-point network type is configured.

B. The interface is not participating in OSPF.

C. The default Hello and Dead timers are in use.

D. There are six OSPF neighbors on this interface.

Question 163

A user configured OSPF and advertised the Gigabit Ethernet interface in OSPF. By default, to which type of OSPF network does this interface belong?

A. point-to-multipoint

B. point-to-point

C. broadcast

D. nonbroadcast

Question 164

Which attribute does a router use to select the best path when two or more different routes to the same destination exist from two different routing protocols?

A. dual algorithm

B. metric

C. administrative distance

D. hop count

Question 165

Router A learns the same route from two different neighbors; one of the neighbor routers is an OSPF neighbor, and the other is an EIGRP neighbor.

What is the administrative distance of the route that will be installed in the routing table?

A. 20

B. 90

C. 110

D. 115

Question 166

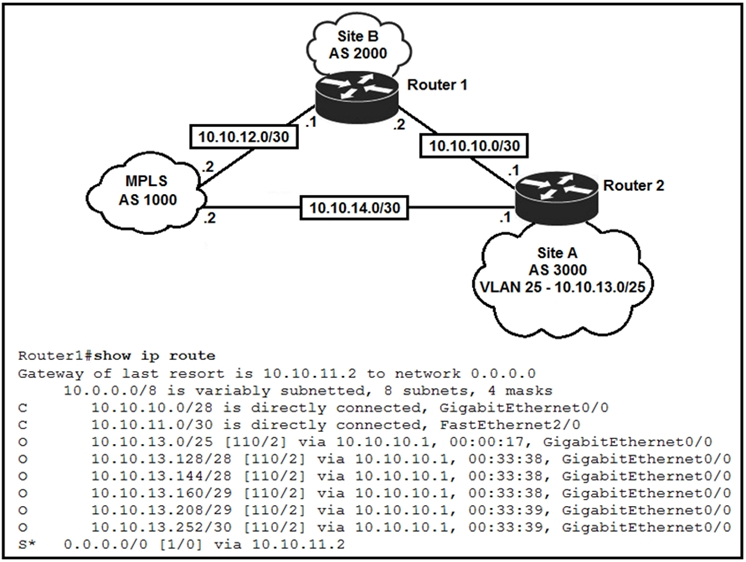

Refer to the exhibit. An engineer is bringing up a new circuit to the MPLS provider on the Gi0/1 interface of Router 1. The new circuit uses eBGP and learns the route to VLAN25 from the BGP path.

What is the expected behavior for the traffic flow for route 10.10.13.0/25?

A. Traffic to 10.10.13.0/25 is load balanced out of multiple interfaces.

B. Traffic to 10.10.13.0/25 is asymmetrical.

C. Route 10.10.13.0/25 is updated in the routing table as being learned from interface Gi0/1.

D. Route 10.10.13.0/25 learned via the Gi0/0 interface remains in the routing table.

Question 167

Which two actions influence the EIGRP route selection process? (Choose two.)

Select all that apply

A. The advertised distance is calculated by a downstream neighbor to inform the local router of the bandwidth on the link.

B. The router calculates the feasible distance of all paths to the destination route.

C. The router must use the advertised distance as the metric for any given route.

D. The router calculates the best backup path to the destination route and assigns it as the feasible successor.

E. The router calculates the reported distance by multiplying the delay on the exiting interface by 256.

Question 168

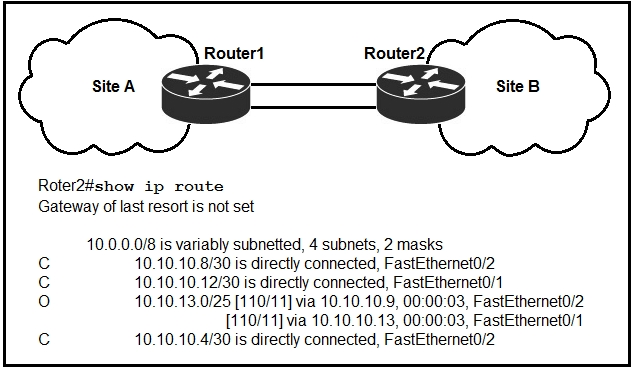

Refer to the exhibit. If OSPF is running on this network, how does Router2 handle traffic from Site B to 10.10.13.128/25 at Site A?

A. It sends packets out of interface Fa0/1 only.

B. It sends packets out of interface Fa0/2 only.

C. It load-balances traffic out of Fa0/1 and Fa0/2.

D. It cannot send packets to 10.10.13.128/25.

Question 169

Which two outcomes are predictable behaviors for HSRP? (Choose two.)

Select all that apply

A. The two routers negotiate one router as the active router and the other as the standby router.

B. The two routers share the same interface IP address, and default gateway traffic is load-balanced between them.

C. The two routers synchronize configurations to provide consistent packet forwarding.

D. Each router has a different IP address, both routers act as the default gateway on the LAN, and traffic is load-balanced between them.

E. The two routers share a virtual IP address that is used as the default gateway for devices on the LAN.

Question 170

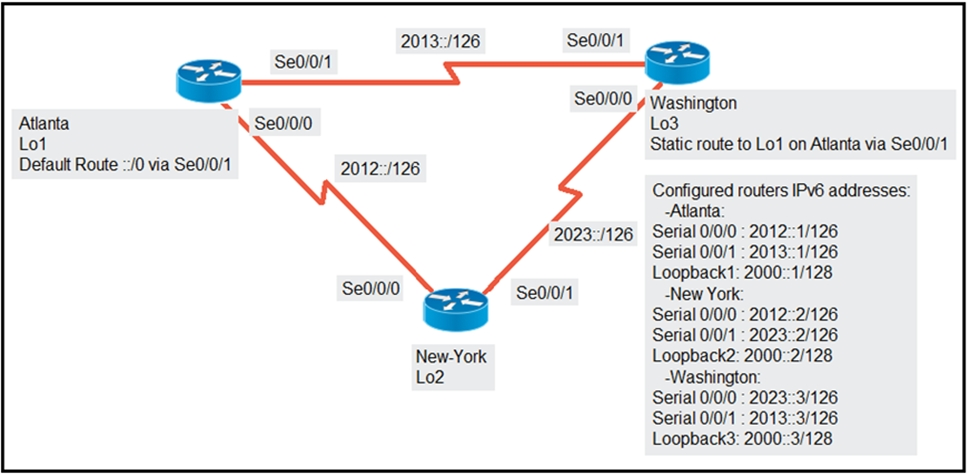

Refer to the exhibit. An engineer is configuring the New York router to reach the Lo1 interface of the Atlanta router using interface Se0/0/0 as the primary path.

Which two commands must be configured on the New York router so that it reaches the Lo1 interface of the Atlanta router via Washington when the link between

New York and Atlanta goes down? (Choose two.)

Select all that apply

A. Ipv6 route 2000::1/128 2012::1

B. Ipv6 route 2000::1/128 2012::1 5

C. Ipv6 route 2000::1/128 2012::2

D. Ipv6 route 2000::1/128 2023::2 5

E. Ipv6 route 2000::1/128 2023::3 5
