Cisco CCNA 200-301 (V1.1) Practice Questions

The latest changes and updates from the administration for this exam.

verified

Latest Update: Jun 22 2026

All questions are working fine.

All Questions (375)bookmarkBookmarked (0)

All375Show all accessible questions in this exam.Missed375Questions you haven't attempted yet.Incorrect0Questions you answered incorrectly on your last attempt.

Question 121

What criteria is used first during the root port selection process?

A. local port ID

B. lowest path cost to the root bridge

C. lowest neighbor's bridge ID

D. lowest neighbor's port ID

Question 122

Which statement about VLAN configuration is true?

A. The switch must be in VTP server or transparent mode before you can configure a VLAN

B. The switch must be in config-vlan mode before you configure an extended VLAN

C. Dynamic inter-VLAN routing is supported on VLAN2 through VLAN 4064

D. A switch in VTP transparent mode save the VLAN databases to the running configuration only

Question 123

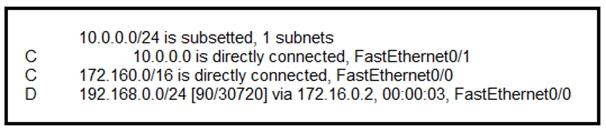

Refer to the exhibit. Which route type does the routing protocol Code D represent in the output?

A. statically assigned route

B. route learned through EIGRP

C. /24 route of a locally configured IP

D. internal BGP route

Question 124

An engineer must configure an OSPF neighbor relationship between router R1 and R3. The authentication configuration has been configured and the connecting interfaces are in the same 192.168.1.0/30 subnet. What are the next two steps to complete the configuration? (Choose two.)

Select all that apply

A. configure the interfaces as OSPF active on both sides

B. configure both interfaces with the same area ID

C. configure the hello and dead timers to match on both sides

D. configure the same process ID for the router OSPF process

E. configure the same router ID on both routing processes

Question 125

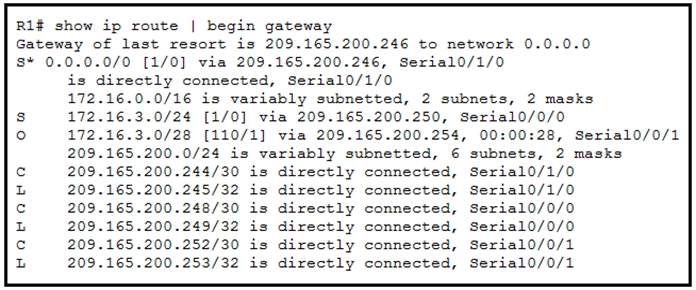

Refer to the exhibit. A packet is being sent across router R1 to host 172.16.0.14. What is the destination route for the packet?

A. 209.165.200.250 via Serial0/0/0

B. 209.165.200.254 via Serial0/0/0

C. 209.165.200.254 via Serial0/0/1

D. 209.165.200.246 via Serial0/1/0

Question 126

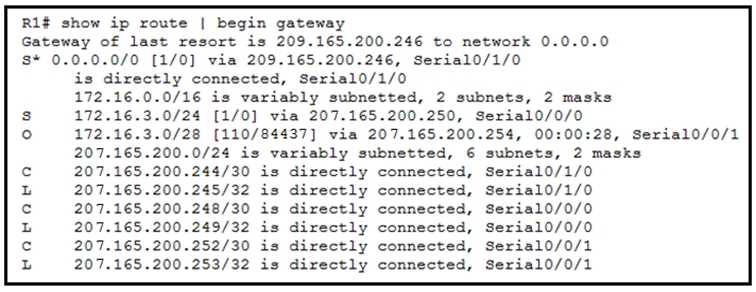

Refer to the exhibit. A packet is being sent across router R1 to host 172.16.3.14. To which destination does the router send the packet?

A. 207.165.200.246 via Serial0/1/0

B. 207.165.200.254 via Serial0/0/0

C. 207.165.200.250 via Serial0/0/0

D. 207.165.200.254 via Serial0/0/1

Question 127

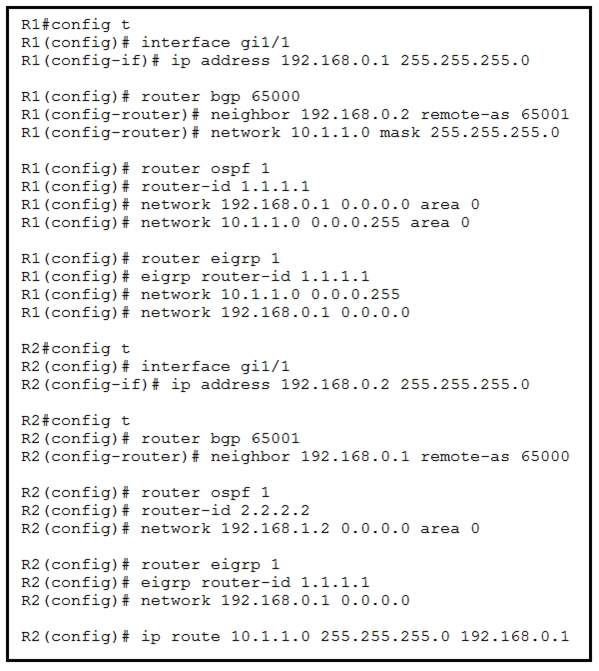

Refer to the exhibit. Router R2 is configured with multiple routes to reach network 10.1.1.0/24 from router R1. Which path is chosen by router R2 to reach the destination network 10.1.1.0/24?

A. static

B. EIGRP

C. eBGP

D. OSPF

Question 128

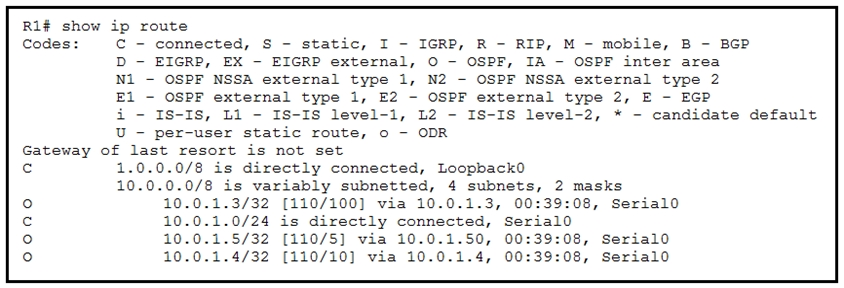

Refer to the exhibit. What is the next hop address for traffic that is destined to host 10.0.1.5?

A. Loopback 0

B. 10.0.1.4

C. 10.0.1.3

D. 10.0.1.50

Question 129

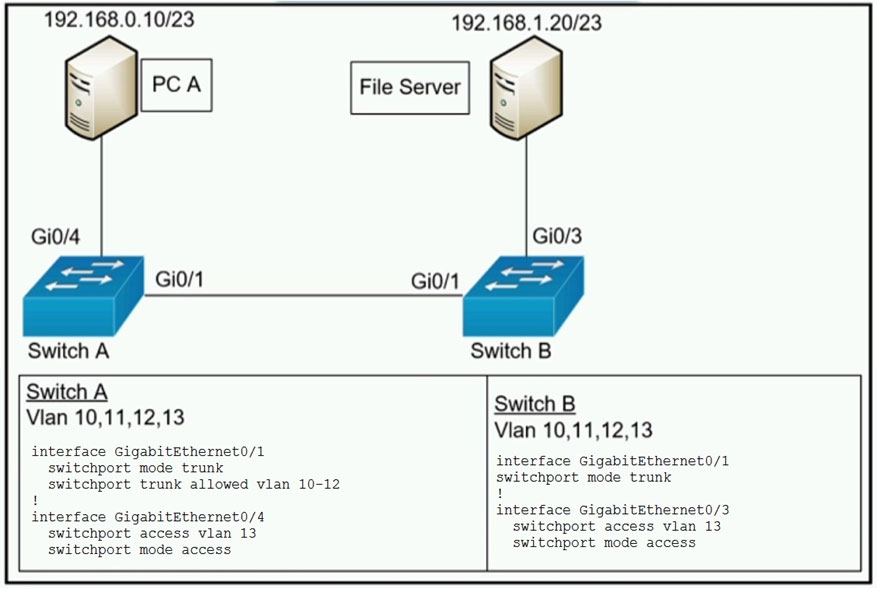

Refer to the exhibit. A network administrator assumes a task to complete the connectivity between PC A and the File Server. Switch A and Switch B have been partially configured with VLANs 10, 11, 12, and 13. What is the next step in the configuration?

A. Add PC A to VLAN 10 and the File Server to VLAN 11 for VLAN segmentation

B. Add VLAN 13 to the trunk links on Switch A and Switch B for VLAN propagation

C. Add a router on a stick between Switch A and Switch B allowing for Inter-VLAN routing

D. Add PC A to the same subnet as the File Server allowing for intra-VLAN communication

Question 130

DRAG DROP -

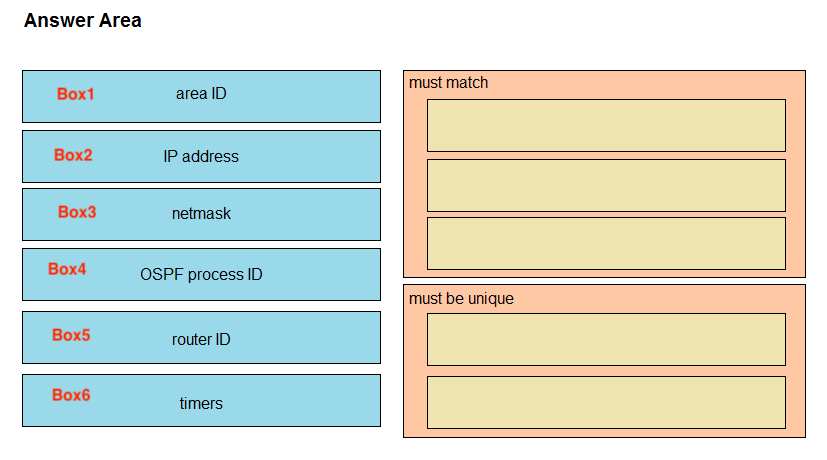

A network engineer is configuring an OSPFv2 neighbor adjacency. Drag and drop the parameters from the left onto their required categories on the right. Not all parameters are used.

Select and Place:

A. must match: Box1 -> Box3 -> Box5; must be unique: Box2 -> Box6

B. must match: Box1 -> Box5 -> Box6; must be unique: Box2 -> Box3

C. must match: Box2 -> Box3 -> Box6; must be unique: Box1 -> Box5

D. must match: Box1 -> Box3 -> Box6; must be unique: Box2 -> Box5
