Correct option:

Enable storage auto-scaling for RDS MySQL

If your workload is unpredictable, you can enable storage autoscaling for an Amazon RDS DB instance. With storage autoscaling enabled, when Amazon RDS detects that you are running out of free database space it automatically scales up your storage. Amazon RDS starts a storage modification for an autoscaling-enabled DB instance when these factors apply:

Free available space is less than 10 percent of the allocated storage.

The low-storage condition lasts at least five minutes.

At least six hours have passed since the last storage modification.

The maximum storage threshold is the limit that you set for autoscaling the DB instance. You can't set the maximum storage threshold for autoscaling-enabled instances to a value greater than the maximum allocated storage.

Incorrect options:

Migrate RDS MySQL to Aurora which offers storage auto-scaling - Although Aurora offers automatic storage scaling, this option is ruled out since it involves significant systems administration effort to migrate from RDS MySQL to Aurora. It is much easier to just enable storage auto-scaling for RDS MySQL.

Migrate RDS MySQL database to DynamoDB which automatically allocates storage space when required - This option is ruled out since DynamoDB is a NoSQL database which implies significant development effort to change the application logic to connect and query data from the underlying database. It is much easier to just enable storage auto-scaling for RDS MySQL.

Create read replica for RDS MySQL - Read replicas make it easy to take advantage of supported engines' built-in replication functionality to elastically scale out beyond the capacity constraints of a single DB instance for read-heavy database workloads. You can create multiple read replicas for a given source DB Instance and distribute your application’s read traffic amongst them. This option acts as a distractor as read replicas cannot help to automatically scale storage for the primary database.

Reference:

https://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/USER_PIOPS.StorageTypes.html

Correct option:

Query the metadata at http://169.254.169.254/latest/meta-data - Because your instance metadata is available from your running instance, you do not need to use the Amazon EC2 console or the AWS CLI. This can be helpful when you're writing scripts to run from your instance. For example, you can access the local IP address of your instance from instance metadata to manage a connection to an external application. To view all categories of instance metadata from within a running instance, use the following URI - http://169.254.169.254/latest/meta-data/. The IP address 169.254.169.254 is a link-local address and is valid only from the instance. All instance metadata is returned as text (HTTP content type text/plain).

Incorrect options:

Create an IAM role and attach it to your EC2 instance that helps you perform a 'describe' API call - The AWS CLI has a describe-instances API call needs instance ID as an input. So, this will not work for the current use case wherein we do not know the instance ID.

Query the user data at http://169.254.169.254/latest/user-data - This address retrieves the user data that you specified when launching your instance.

Query the user data at http://254.169.254.169/latest/meta-data - The IP address specified is wrong.

References:

https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/instancedata-data-retrieval.html

https://awscli.amazonaws.com/v2/documentation/api/latest/reference/ec2/describe-instances.html

Correct option:

Docker multi-container platform

Docker is a container platform that allows you to define your software stack and store it in an image that can be downloaded from a remote repository. Use the Multicontainer Docker platform if you need to run multiple containers on each instance. The Multicontainer Docker platform does not include a proxy server. Elastic Beanstalk uses Amazon Elastic Container Service (Amazon ECS) to coordinate container deployments to multi-container Docker environments.

Incorrect options:

Docker single-container platform - Docker is a container platform that allows you to define your software stack and store it in an image that can be downloaded from a remote repository. Use the Single Container Docker platform if you only need to run a single Docker container on each instance in your environment. The single container platform includes an Nginx proxy server.

Custom Platform - Elastic Beanstalk supports custom platforms. A custom platform provides more advanced customization than a custom image in several ways. A custom platform lets you develop an entirely new platform from scratch, customizing the operating system, additional software, and scripts that Elastic Beanstalk runs on platform instances. This flexibility enables you to build a platform for an application that uses a language or other infrastructure software, for which Elastic Beanstalk doesn't provide a managed platform. Compare that to custom images, where you modify an Amazon Machine Image (AMI) for use with an existing Elastic Beanstalk platform, and Elastic Beanstalk still provides the platform scripts and controls the platform's software stack. Besides, with custom platforms, you use an automated, scripted way to create and maintain your customization, whereas with custom images you make the changes manually over a running instance.

Third Party Platform - This is a made-up option.

Reference:

https://docs.aws.amazon.com/elasticbeanstalk/latest/platforms/platforms-supported.html#platforms-supported.mcdocker

Correct option:

AWS X-Ray

AWS X-Ray is a service that collects data about requests that your application serves and provides tools you can use to view, filter, and gain insights into that data to identify issues and opportunities for optimization. For any traced request to your application, you can see detailed information not only about the request and response but also about calls that your application makes to downstream AWS resources, microservices, databases and HTTP web APIs.

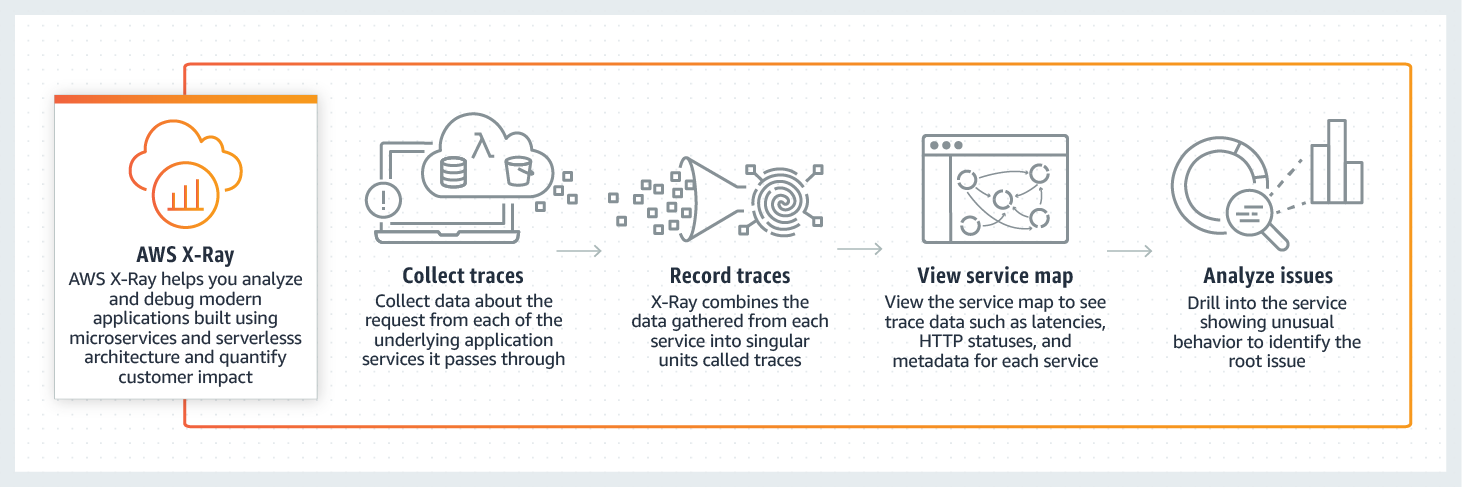

How X-Ray Works:

Incorrect options

VPC Flow Logs - VPC Flow Logs is a feature that enables you to capture information about the IP traffic going to and from network interfaces in your VPC. Flow log data can be published to Amazon CloudWatch Logs and Amazon S3. After you've created a flow log, you can retrieve and view its data in the chosen destination.

Flow logs can help you with several tasks; for example, to troubleshoot why specific traffic is not reaching an instance, which in turn helps you diagnose overly restrictive security group rules. You can also use flow logs as a security tool to monitor the traffic that is reaching your instance.

CloudWatch Events - Amazon CloudWatch Events delivers a near real-time stream of system events that describe changes in Amazon Web Services (AWS) resources. Using simple rules that you can quickly set up, you can match events and route them to one or more target functions or streams. CloudWatch Events becomes aware of operational changes as they occur. CloudWatch Events responds to these operational changes and takes corrective action as necessary, by sending messages to respond to the environment, activating functions, making changes, and capturing state information.

CloudTrail - AWS CloudTrail is a service that enables governance, compliance, operational auditing, and risk auditing of your AWS account. With CloudTrail, you can log, continuously monitor, and retain account activity related to actions across your AWS infrastructure. CloudTrail provides event history of your AWS account activity, including actions taken through the AWS Management Console, AWS SDKs, command-line tools, and other AWS services. This event history simplifies security analysis, resource change tracking, and troubleshooting.

Reference:

https://docs.aws.amazon.com/xray/latest/devguide/aws-xray.html

Correct option:

CloudWatch Events

You can create a Lambda function and direct CloudWatch Events to execute it on a regular schedule. You can specify a fixed rate (for example, execute a Lambda function every hour or 15 minutes), or you can specify a Cron expression.

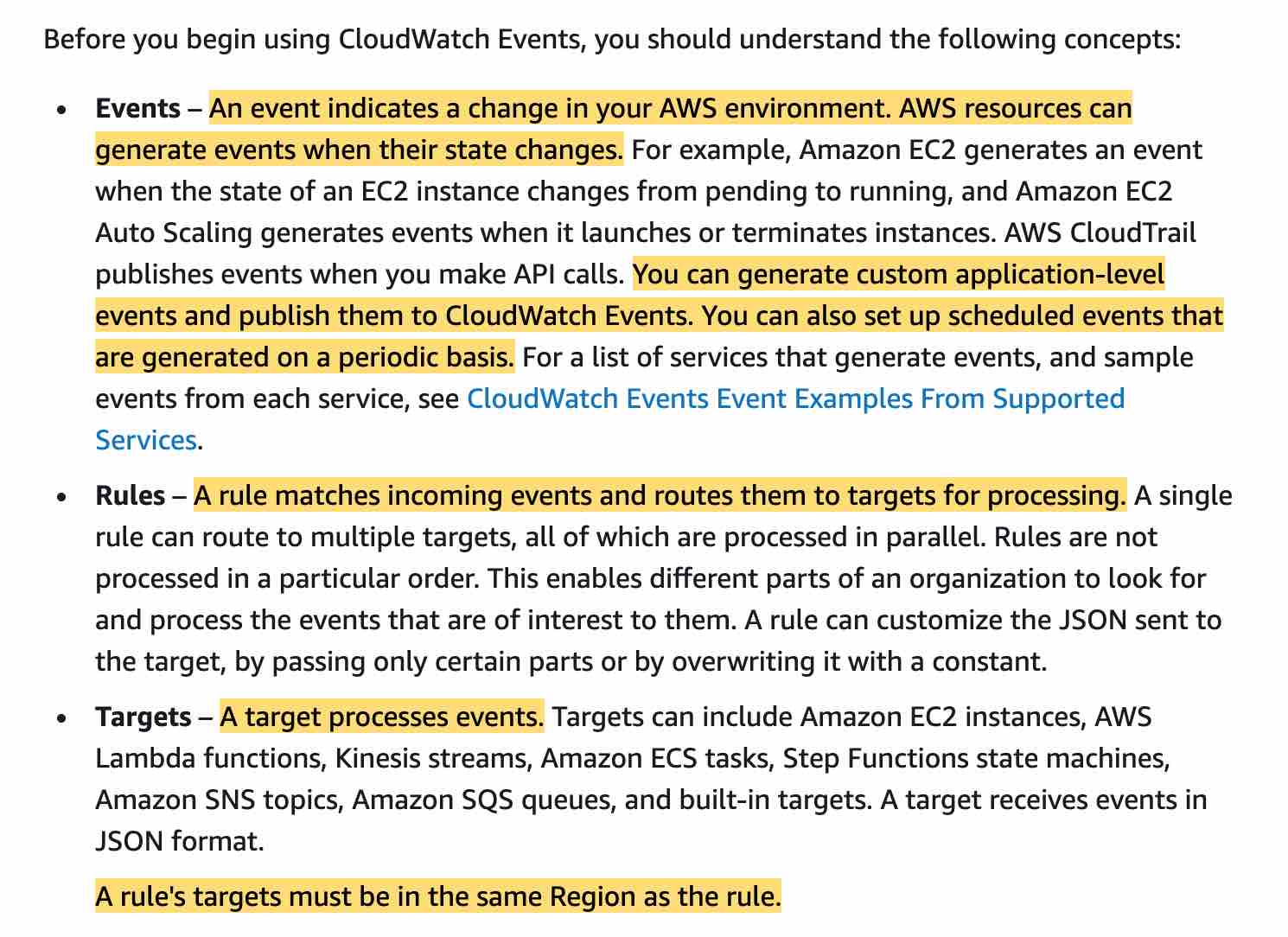

CloudWatch Events Key Concepts:

via - https://docs.aws.amazon.com/AmazonCloudWatch/latest/events/WhatIsCloudWatchEvents.html

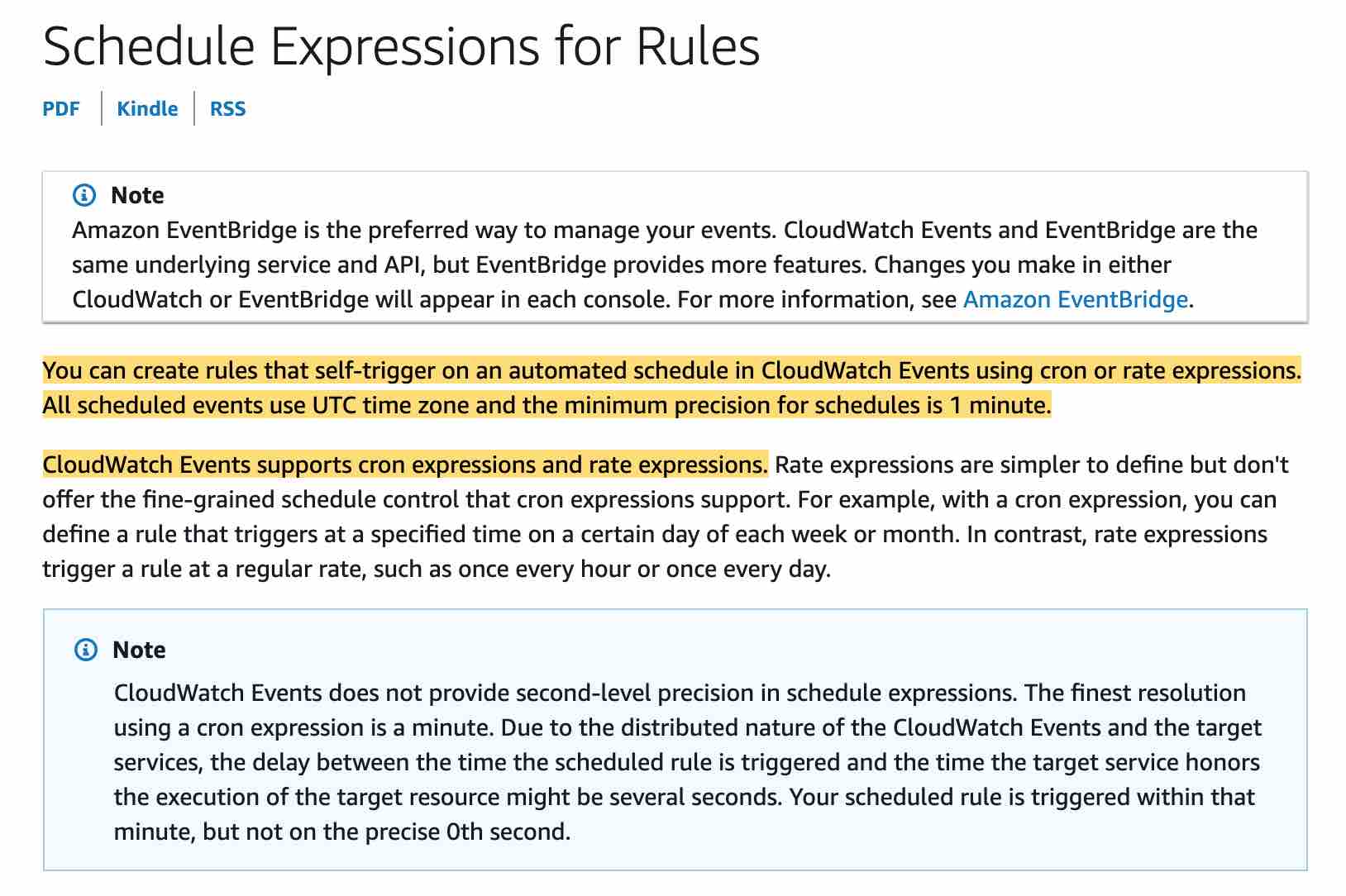

Schedule Expressions for CloudWatch Events Rules:

via - https://docs.aws.amazon.com/AmazonCloudWatch/latest/events/ScheduledEvents.html

Incorrect options:

Amazon S3

SQS

Kinesis

These three AWS services don't have cron capabilities, so these options are incorrect.

References:

https://docs.aws.amazon.com/AmazonCloudWatch/latest/events/WhatIsCloudWatchEvents.html

https://docs.aws.amazon.com/lambda/latest/dg/with-scheduled-events.html

Correct options:

Deploy the X-Ray daemon agent as a sidecar container

In Amazon ECS, create a Docker image that runs the X-Ray daemon, upload it to a Docker image repository, and then deploy it to your Amazon ECS cluster. You can use port mappings and network mode settings in your task definition file to allow your application to communicate with the daemon container.

As we are using AWS Fargate, we do not have control over the underlying EC2 instance and thus we can't deploy the agent on the EC2 instance or run an X-Ray agent container as a daemon set (only available for ECS classic).

via - https://docs.aws.amazon.com/xray/latest/devguide/xray-daemon-ecs.html

Provide the correct IAM task role to the X-Ray container

For Fargate, we can only provide IAM roles to tasks, which is also the best security practice should we use EC2 instances.

Incorrect options:

Deploy the X-Ray daemon agent as a daemon set on ECS - As explained above, since we are using AWS Fargate, we do not have control over the underlying EC2 instance and thus we can't run an X-Ray agent container as a daemon set.

Deploy the X-Ray daemon agent as a process on your EC2 instance

Provide the correct IAM instance role to the EC2 instance

As we are using AWS Fargate, we do not have control over the underlying EC2 instance, so both these options are incorrect.

Reference:

https://docs.aws.amazon.com/xray/latest/devguide/xray-daemon-ecs.html

Correct option:

SSE-C

You have the following options for protecting data at rest in Amazon S3:

Server-Side Encryption – Request Amazon S3 to encrypt your object before saving it on disks in its data centers and then decrypt it when you download the objects.

Client-Side Encryption – Encrypt data client-side and upload the encrypted data to Amazon S3. In this case, you manage the encryption process, the encryption keys, and related tools.

For the given use-case, the company wants to manage the encryption keys via its custom application and let S3 manage the encryption, therefore you must use Server-Side Encryption with Customer-Provided Keys (SSE-C).

Using server-side encryption with customer-provided encryption keys (SSE-C) allows you to set your encryption keys. With the encryption key you provide as part of your request, Amazon S3 manages both the encryption, as it writes to disks, and decryption, when you access your objects.

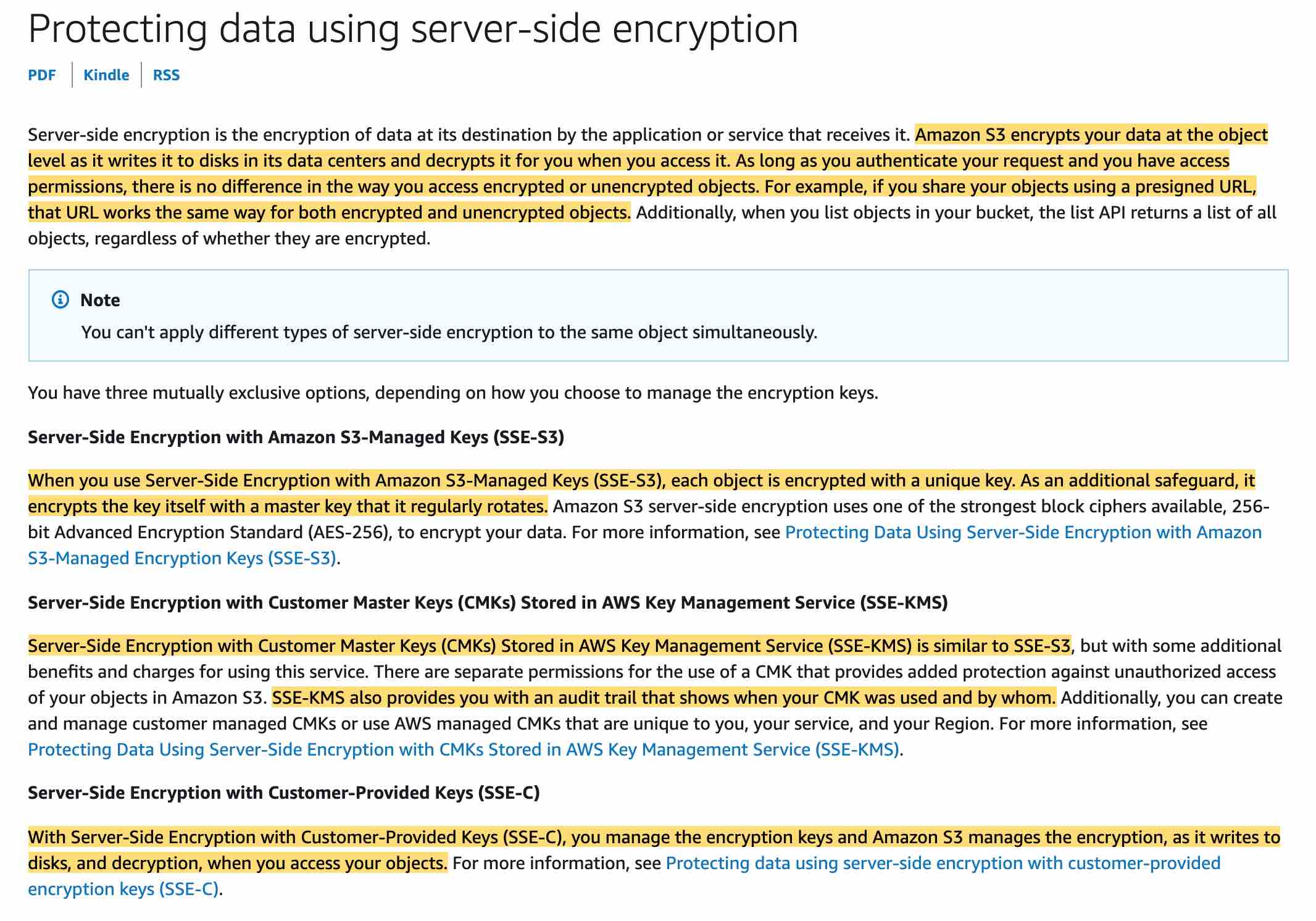

Please review these three options for Server Side Encryption on S3:

via - https://docs.aws.amazon.com/AmazonS3/latest/dev/serv-side-encryption.html

Incorrect options:

SSE-KMS - Server-Side Encryption with Customer Master Keys (CMKs) stored in AWS Key Management Service (SSE-KMS) is similar to SSE-S3. SSE-KMS provides you with an audit trail that shows when your CMK was used and by whom. Additionally, you can create and manage customer-managed CMKs or use AWS managed CMKs that are unique to you, your service, and your Region.

Client-Side Encryption - You can encrypt the data client-side and upload the encrypted data to Amazon S3. In this case, you manage the encryption process, the encryption keys, and related tools.

SSE-S3 - When you use Server-Side Encryption with Amazon S3-Managed Keys (SSE-S3), each object is encrypted with a unique key. As an additional safeguard, it encrypts the key itself with a master key that it regularly rotates. So this option is incorrect.

Reference:

https://docs.aws.amazon.com/AmazonS3/latest/dev/serv-side-encryption.html

Correct option:

Use a Lifecycle Policy

Each time you upload a new version of your application with the Elastic Beanstalk console or the EB CLI, Elastic Beanstalk creates an application version. If you don't delete versions that you no longer use, you will eventually reach the application version limit and be unable to create new versions of that application.

You can avoid hitting the limit by applying an application version lifecycle policy to your applications. A lifecycle policy tells Elastic Beanstalk to delete old application versions or to delete application versions when the total number of versions for an application exceeds a specified number.

Elastic Beanstalk applies an application's lifecycle policy each time you create a new application version and deletes up to 100 versions each time the lifecycle policy is applied. Elastic Beanstalk deletes old versions after creating the new version and does not count the new version towards the maximum number of versions defined in the policy.

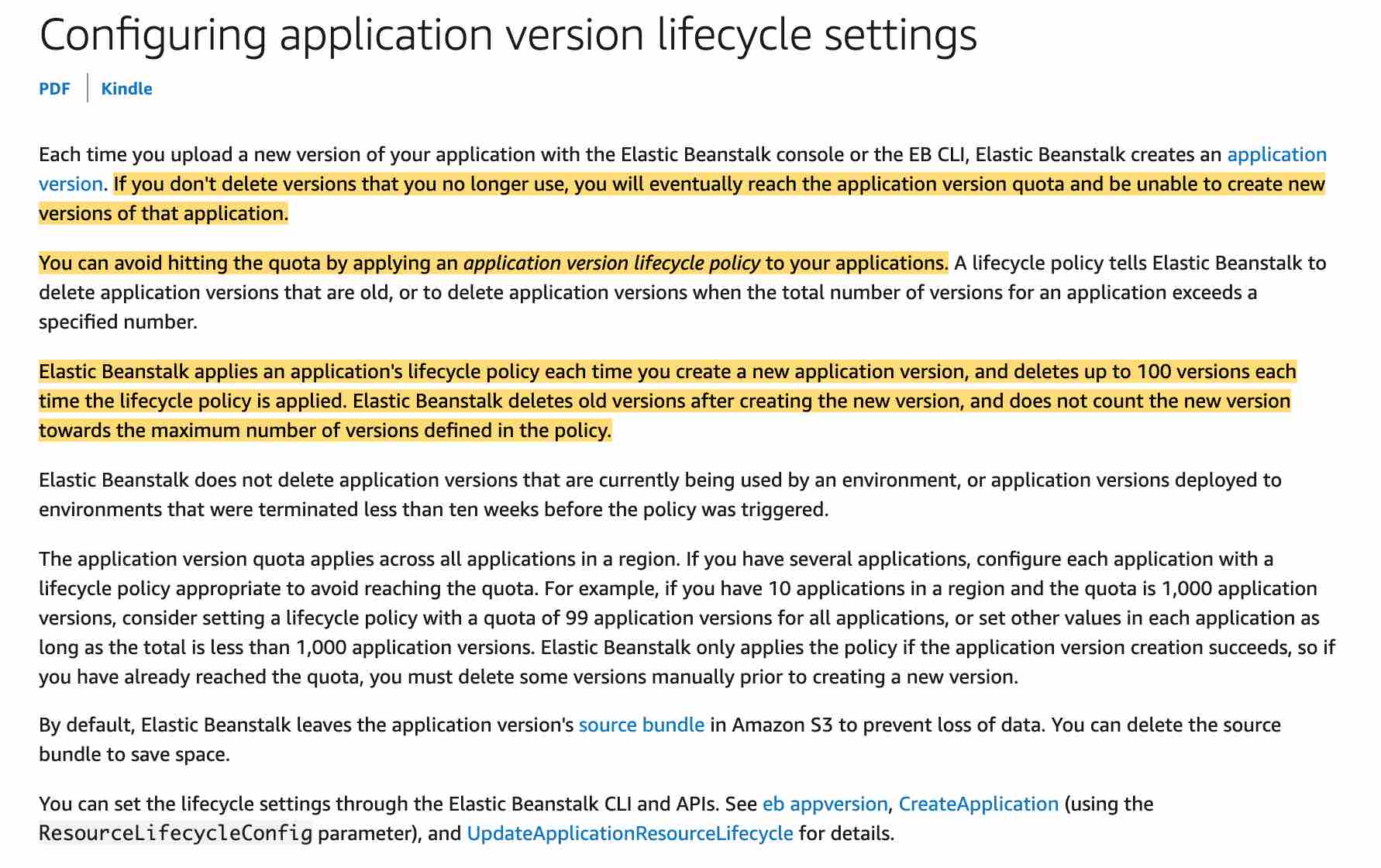

via - https://docs.aws.amazon.com/elasticbeanstalk/latest/dg/applications-lifecycle.html

Incorrect options:

Setup an .ebextensions files - You can add AWS Elastic Beanstalk configuration files (.ebextensions) to your web application's source code to configure your environment and customize the AWS resources that it contains. This does not help with managing versions.

Define a Lambda function - This could work but would require a lot of manual scripting, to achieve the same desired effect as the Lifecycle Policy EB feature.

Use Worker Environments - This won't help. If your application performs operations or workflows that take a long time to complete, you can offload those tasks to a dedicated worker environment. Decoupling your web application front end from a process that performs blocking operations is a common way to ensure that your application stays responsive under load.

Reference:

https://docs.aws.amazon.com/elasticbeanstalk/latest/dg/applications-lifecycle.html

Correct option:

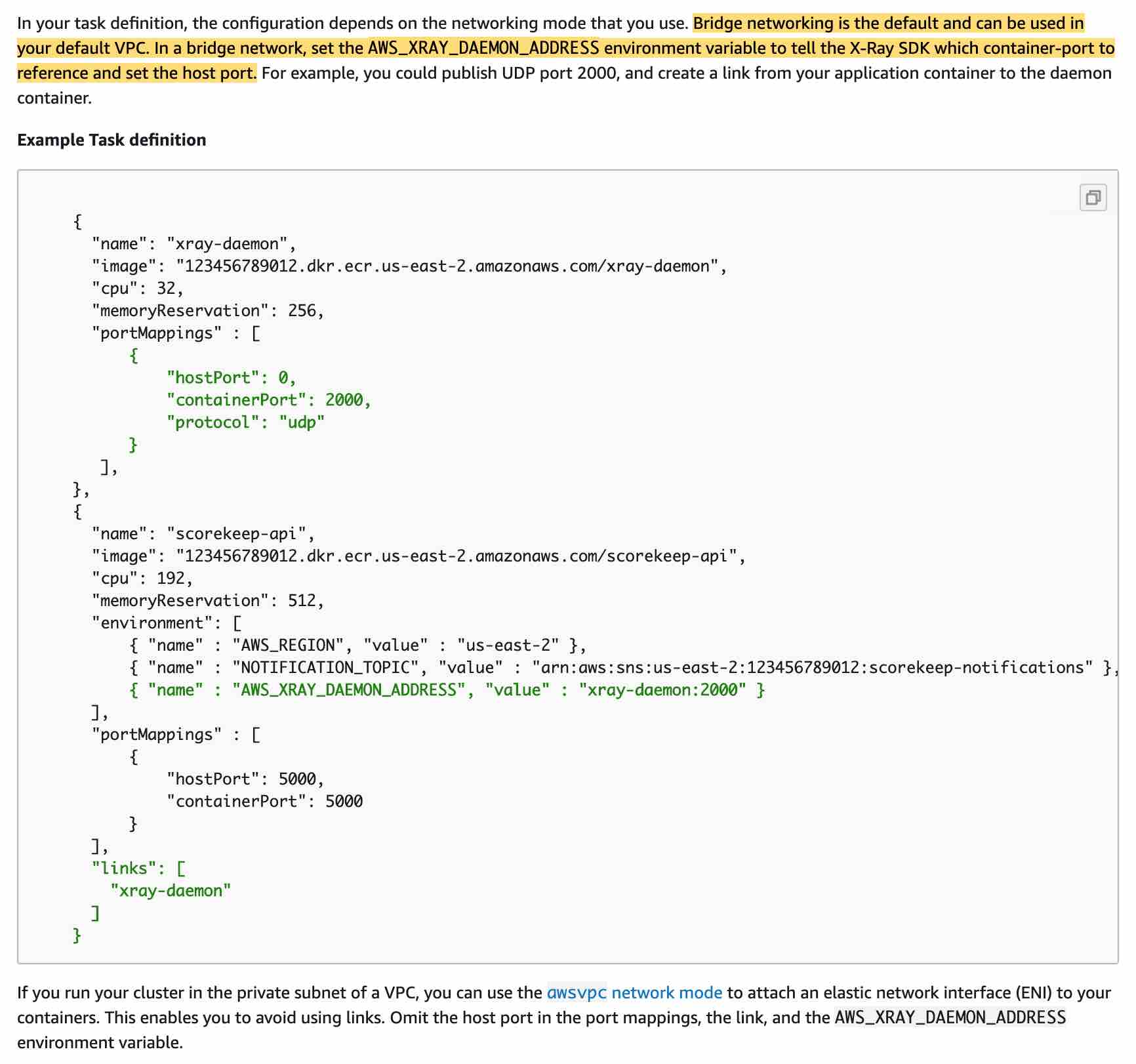

AWS_XRAY_DAEMON_ADDRESS

Set the host and port of the X-Ray daemon listener. By default, the SDK uses 127.0.0.1:2000 for both trace data (UDP) and sampling (TCP). Use this variable if you have configured the daemon to listen on a different port or if it is running on a different host.

Incorrect options:

AWS_XRAY_TRACING_NAME - This sets a service name that the SDK uses for segments.

AWS_XRAY_CONTEXT_MISSING - This should be set to LOG_ERROR to avoid throwing exceptions when your instrumented code attempts to record data when no segment is open.

AWS_XRAY_DEBUG_MODE - This should be set to TRUE to configure the SDK to output logs to the console, instead of configuring a logger.

Reference:

https://docs.aws.amazon.com/xray/latest/devguide/xray-sdk-nodejs-configuration.html

Correct options:

Assign an SSL certificate to the Load Balancer

This ensures that the Load Balancer can expose an HTTPS endpoint.

Open up port 80 & port 443

This ensures that the Load Balancer will allow both the HTTP (80) and HTTPS (443) protocol for incoming connections

Configure your EC2 instances to redirect HTTP traffic to HTTPS

This ensures traffic originating from HTTP onto the Load Balancer forces a redirect to HTTPS by the EC2 instances before being correctly served, thus ensuring the traffic served is fully encrypted.

Incorrect options:

Only open up port 80 - This is not correct as it would not allow HTTPS traffic (port 443).

Only open up port 443 - This is not correct as it would not allow HTTP traffic (port 80).

Configure your EC2 instances to redirect HTTPS traffic to HTTP - This is not correct as it would force HTTP traffic, instead of HTTPS.

References:

https://docs.aws.amazon.com/elasticbeanstalk/latest/dg/configuring-https-httpredirect.html

https://docs.aws.amazon.com/elasticbeanstalk/latest/dg/configuring-https-elb.html
