Correct option:

Use Amazon Simple Notification Service (SNS) to push notifications when an order is created. Configure different Amazon Simple Queue Service (SQS) queues to receive these messages for downstream processing

Amazon SNS works closely with Amazon Simple Queue Service (Amazon SQS). These services provide different benefits for developers. Amazon SNS allows applications to send time-critical messages to multiple subscribers through a “push” mechanism, eliminating the need to periodically check or “poll” for updates. Amazon SQS is a message queue service used by distributed applications to exchange messages through a polling model, and can be used to decouple sending and receiving components—without requiring each component to be concurrently available.

Using Amazon SNS and Amazon SQS together, messages can be delivered to applications that require immediate notification of an event, and also stored in an Amazon SQS queue for other applications to process at a later time.

When you subscribe an Amazon SQS queue to an Amazon SNS topic, you can publish a message to the topic and Amazon SNS sends an Amazon SQS message to the subscribed queue. The Amazon SQS message contains the subject and message that were published to the topic along with metadata about the message in a JSON document.

SNS-SQS fanout is the right solution for this use case.

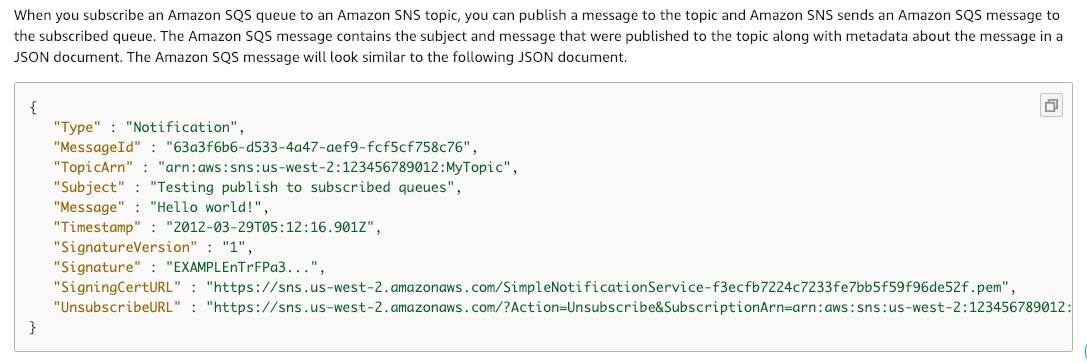

Sample SNS-SQS Fanout message:

via - https://docs.aws.amazon.com/sns/latest/dg/sns-sqs-as-subscriber.html

Incorrect options:

Configure different Amazon Simple Queue Service (SQS) queues to poll for new orders - Amazon SQS cannot be used as a polling service, as messages need to be pushed to the queue, which are then handled by the queue consumers.

Use Amazon Simple Notification Service (SNS) to push notifications and use AWS Lambda functions to process the information received from SNS - Amazon SNS and AWS Lambda are integrated so you can invoke Lambda functions with Amazon SNS notifications. When a message is published to an SNS topic that has a Lambda function subscribed to it, the Lambda function is invoked with the payload of the published message. For the given scenario, we need a service that can store the message data pushed by SNS, for further processing. AWS Lambda does not have capacity to store the message data. In case a Lambda function is unable to process a specific message, it will be left unprocessed. Hence this option is not correct.

Use Amazon Simple Notification Service (SNS) to push notifications to Kinesis Data Firehose delivery streams for processing the data for downstream applications - You can subscribe Amazon Kinesis Data Firehose delivery streams to SNS topics, which allows you to send notifications to additional storage and analytics endpoints. However, Kinesis is built for real-time processing of big data. Whereas, SQS is meant for decoupling dependent systems with easy methods to transmit data/messages. SQS also is a cheaper option when compared to Firehose. Therefore this option is not the right fit for the given use case.

References:

https://docs.aws.amazon.com/sns/latest/dg/sns-sqs-as-subscriber.html

https://docs.aws.amazon.com/sns/latest/dg/sns-lambda-as-subscriber.html

https://docs.aws.amazon.com/sns/latest/dg/sns-firehose-as-subscriber.html

Correct options:

An ALB has three possible target types: Instance, IP and Lambda

When you create a target group, you specify its target type, which determines the type of target you specify when registering targets with this target group. After you create a target group, you cannot change its target type. The following are the possible target types:

1. Instance - The targets are specified by instance ID
2. IP - The targets are IP addresses
3. Lambda - The target is a Lambda function

You can not specify publicly routable IP addresses to an ALB

When the target type is IP, you can specify IP addresses from specific CIDR blocks only. You can't specify publicly routable IP addresses.

Incorrect options:

If you specify targets using an instance ID, traffic is routed to instances using any private IP address from one or more network interfaces - If you specify targets using an instance ID, traffic is routed to instances using the primary private IP address specified in the primary network interface for the instance.

If you specify targets using IP addresses, traffic is routed to instances using the primary private IP address - If you specify targets using IP addresses, you can route traffic to an instance using any private IP address from one or more network interfaces. This enables multiple applications on an instance to use the same port.

An ALB has three possible target types: Hostname, IP and Lambda - This is incorrect, as described in the correct explanation above.

Reference:

https://docs.aws.amazon.com/elasticloadbalancing/latest/application/load-balancer-target-groups.html

Correct option:

Use the AWS CLI associate-kms-key command and specify the KMS key ARN

Log group data is always encrypted in CloudWatch Logs. You can optionally use AWS AWS Key Management Service for this encryption. If you do, the encryption is done using an AWS KMS (AWS KMS) customer master key (CMK). Encryption using AWS KMS is enabled at the log group level, by associating a CMK with a log group, either when you create the log group or after it exists.

After you associate a CMK with a log group, all newly ingested data for the log group is encrypted using the CMK. This data is stored in an encrypted format throughout its retention period. CloudWatch Logs decrypts this data whenever it is requested. CloudWatch Logs must have permissions for the CMK whenever encrypted data is requested.

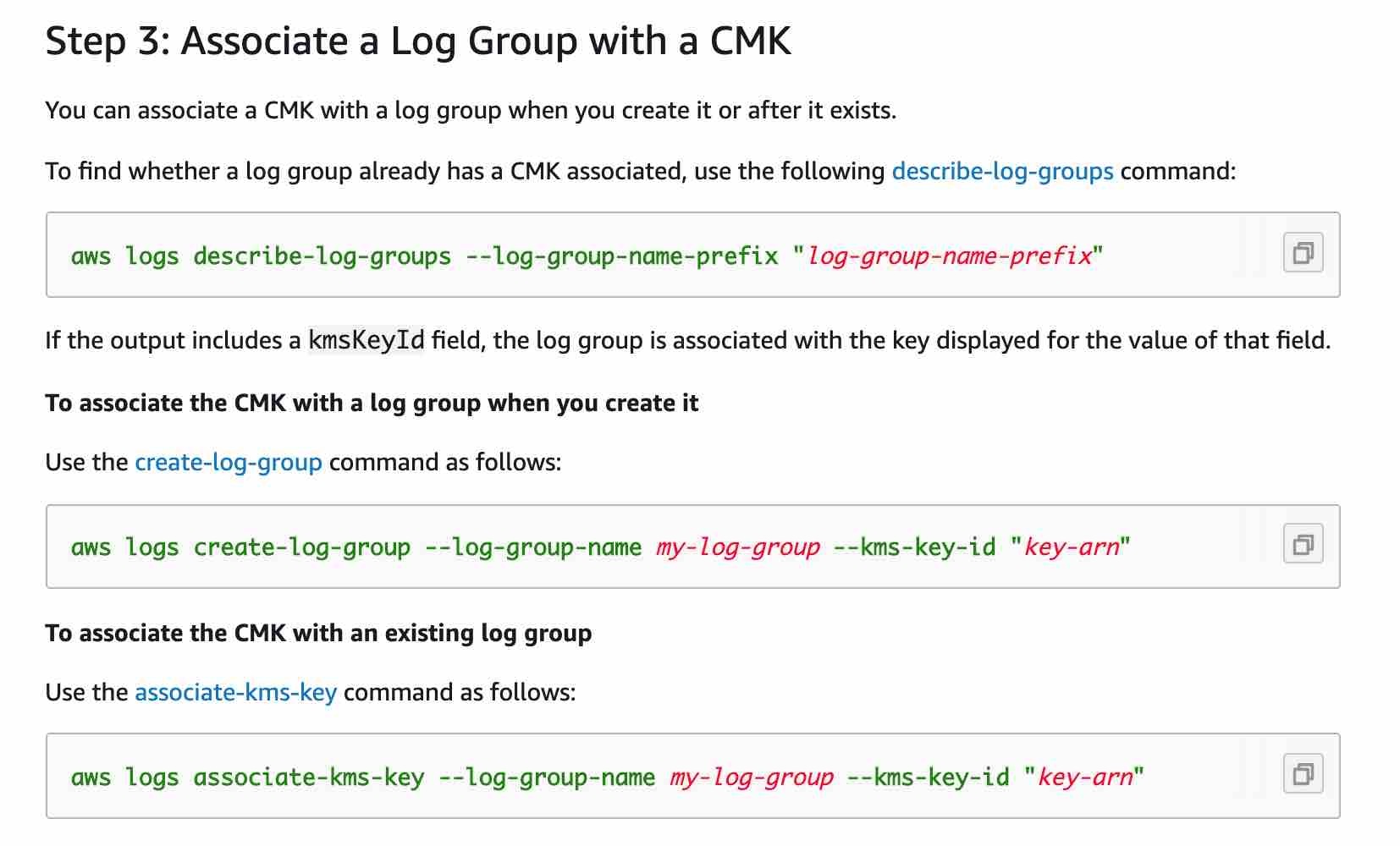

To associate the CMK with an existing log group, you can use the associate-kms-key command.

via - https://docs.aws.amazon.com/AmazonCloudWatch/latest/logs/encrypt-log-data-kms.html

Incorrect options:

Enable the encrypt feature on the log group via the CloudWatch Logs console - CloudWatch Logs console does not have an option to enable encryption for a log group.

Use the AWS CLI describe-log-groups command and specify the KMS key ARN - You can use the describe-log-groups command to find whether a log group already has a CMK associated with it.

Use the AWS CLI create-log-group command and specify the KMS key ARN - You can use the create-log-group command to associate the CMK with a log group when you create it.

Reference:

https://docs.aws.amazon.com/AmazonCloudWatch/latest/logs/encrypt-log-data-kms.html

Correct option:

Move the database connection out of the handler

Here at every Lambda function execution, the database connection handler will be created, and then closed. These connections steps are expensive in terms of time, and thus should be moved out of the handler function so that they are kept in the function execution context, and re-used across function calls. This is what the function should look like in the end:

Incorrect options:

Upgrade the MySQL instance type - The bottleneck here is the MySQL connection object, not the MySQL instance itself.

Change the runtime to Node.js - Re-writing the function in another runtime won't improve the performance.

Increase the Lambda function RAM - While this may help speed-up the Lambda function, as increasing the RAM also increases the CPU allocated to your function, it only makes sense if RAM or CPU is a critical factor in the Lambda function performance. Here, the connection object is at fault.

Reference:

https://docs.aws.amazon.com/lambda/latest/dg/running-lambda-code.html

Correct options:

Path based

You can create a listener with rules to forward requests based on the URL path. This is known as path-based routing. If you are running microservices, you can route traffic to multiple back-end services using path-based routing. For example, you can route general requests to one target group and request to render images to another target group.

This path-based routing allows you to route requests to, for example, /api to one set of servers (also known as target groups) and /mobile to another set. Segmenting your traffic in this way gives you the ability to control the processing environment for each category of requests. Perhaps /api requests are best processed on Compute Optimized instances, while /mobile requests are best handled by Memory Optimized instances.

Host based

You can create Application Load Balancer rules that route incoming traffic based on the domain name specified in the Host header. Requests to api.example.com can be sent to one target group, requests to mobile.example.com to another, and all others (by way of a default rule) can be sent to a third. You can also create rules that combine host-based routing and path-based routing. This would allow you to route requests to api.example.com/production and api.example.com/sandbox to distinct target groups.

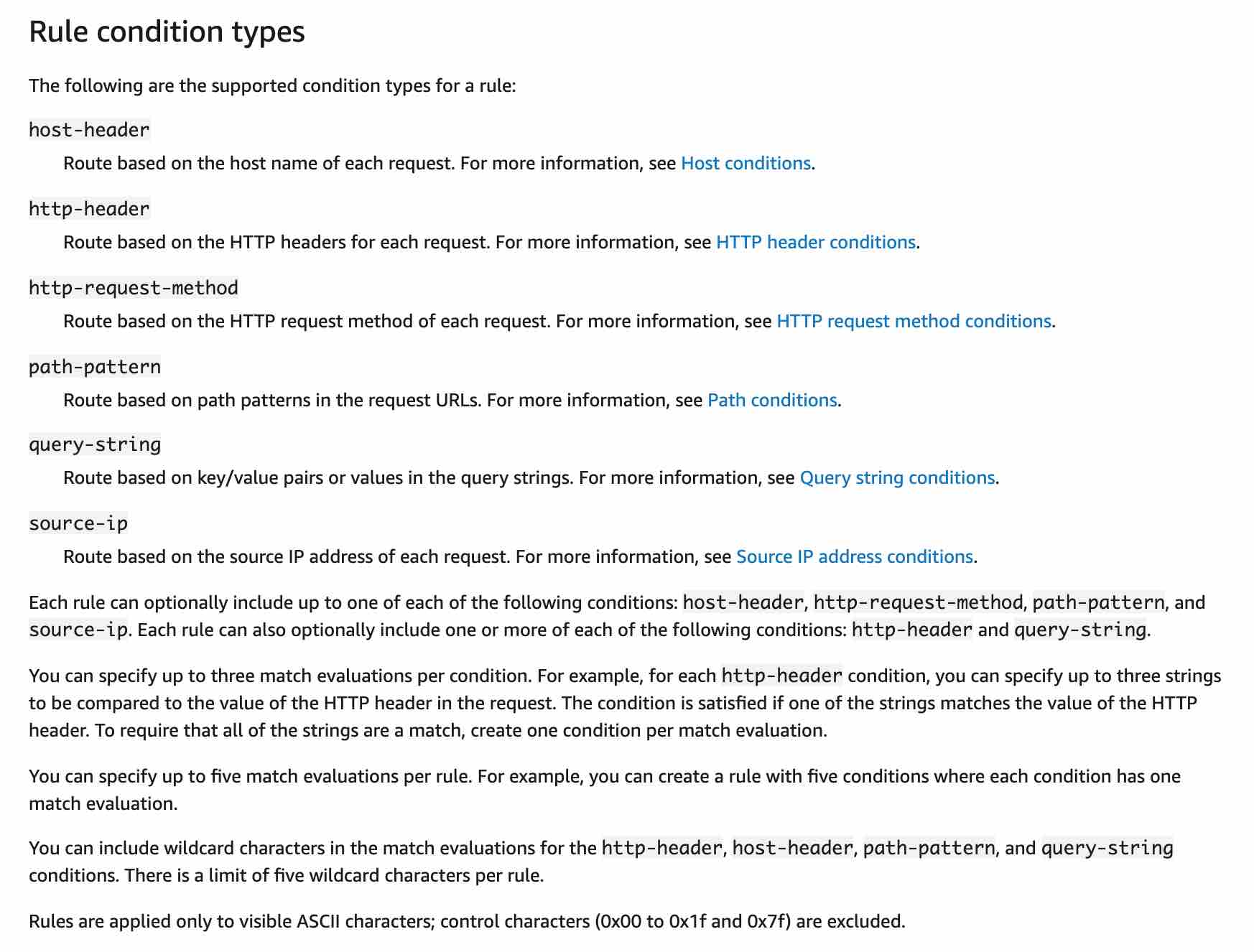

via - https://docs.aws.amazon.com/elasticloadbalancing/latest/application/load-balancer-listeners.html#rule-condition-types

Incorrect options:

Client IP - This option has been added as a distractor. Routing is not based on the client's IP address.

Web browser version - Routing has nothing to do with the client's web browser, if it was then there is something sneaky going on.

Cookie value - Application Load Balancers support load balancer-generated cookies only and you cannot modify them. When routing sticky sessions to route requests to the same target then cookies are needed to be supported by the client's browser.

Reference:

https://aws.amazon.com/blogs/aws/new-host-based-routing-support-for-aws-application-load-balancers/

Correct options:

The user can send a ReceiveMessage request to example_queue, the IAM policy allows this action

The user has both an IAM policy and an Amazon SQS policy that apply to his account. The IAM policy grants his account permission for the ReceiveMessage action on example_queue, whereas the Amazon SQS policy gives his account permission for the SendMessage action on the same queue.

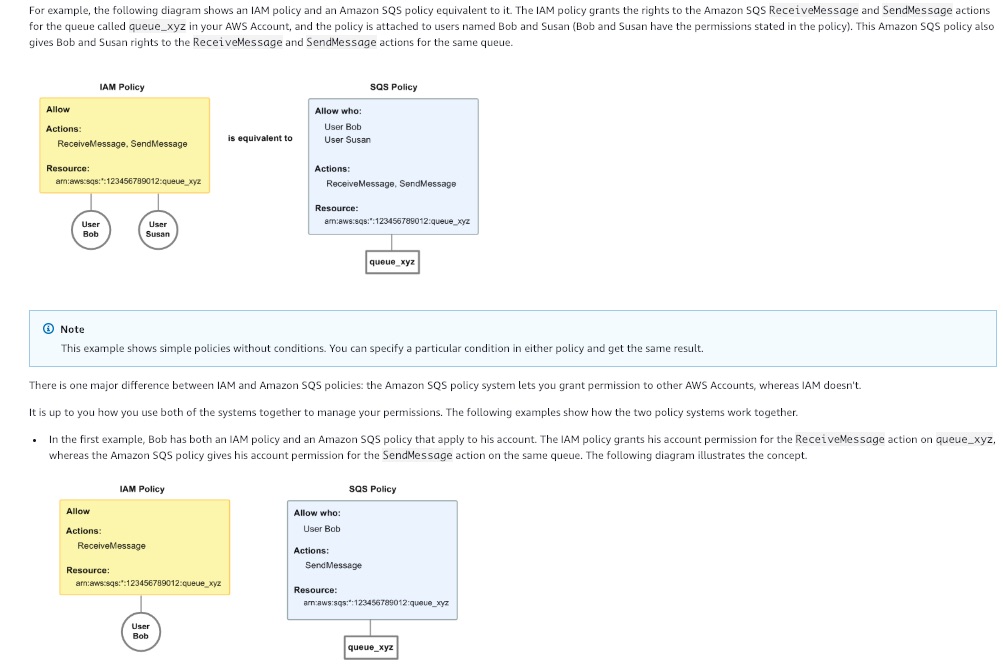

How IAM policy and SQS policy work in tandem:

via - https://docs.aws.amazon.com/AWSSimpleQueueService/latest/SQSDeveloperGuide/sqs-using-identity-based-policies.html

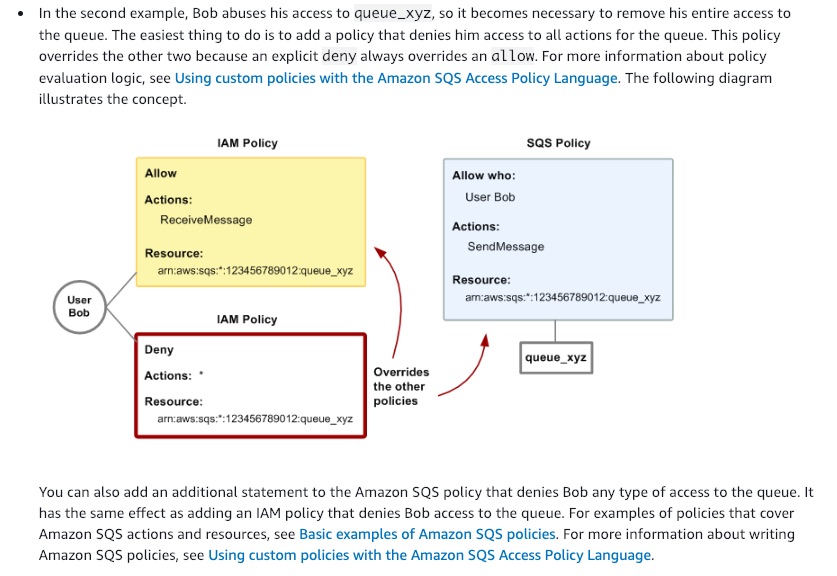

If you add a policy that denies the user access to all actions for the queue, the policy will override the other two policies and the user will not have access to example_queue

To remove the user's full access to the queue, the easiest thing to do is to add a policy that denies him access to all actions for the queue. This policy overrides the other two because an explicit deny always overrides an allow.

You can also add an additional statement to the Amazon SQS policy that denies the user any type of access to the queue. It has the same effect as adding an IAM policy that denies the user access to the queue.

via - https://docs.aws.amazon.com/AWSSimpleQueueService/latest/SQSDeveloperGuide/sqs-using-identity-based-policies.html

Incorrect options:

If the user sends a SendMessage request to example_queue, the IAM policy will deny this action - If the user sends a SendMessage request to example_queue, the Amazon SQS policy allows the action. The IAM policy has no explicit deny on this action, so it plays no part.

Either of IAM policies or Amazon SQS policies should be used to grant permissions. Both cannot be used together - There are two ways to give your users permissions to your Amazon SQS resources: using the Amazon SQS policy system and using the IAM policy system. You can use one or the other, or both. For the most part, you can achieve the same result with either one.

Adding only an IAM policy to deny the user of all actions on the queue is not enough. The SQS policy should also explicitly deny all action - The user can be denied access using any one of the policies. Explicit deny in any policy will override all other allow actions defined using either of the policies.

Reference:

https://docs.aws.amazon.com/AWSSimpleQueueService/latest/SQSDeveloperGuide/sqs-using-identity-based-policies.html

Correct option:

Configure CloudFront with multiple origins to serve both static and dynamic content at low latency to global users

Amazon CloudFront is a web service that speeds up distribution of your static and dynamic web content, such as .html, .css, .js, and image files, to your users. CloudFront delivers your content through a worldwide network of data centers called edge locations. When a user requests content that you're serving with CloudFront, the request is routed to the edge location that provides the lowest latency (time delay), so that content is delivered with the best possible performance.

You can configure a single CloudFront web distribution to serve different types of requests from multiple origins.

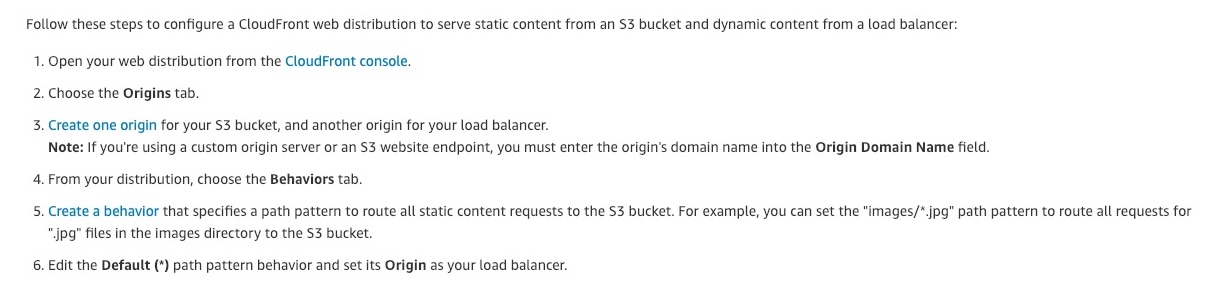

Steps to configure CLoudFront for multiple origins:

via - https://aws.amazon.com/premiumsupport/knowledge-center/cloudfront-distribution-serve-content/

Incorrect options:

Use CloudFront's Lambda@Edge feature to server data from S3 buckets and load balancer programmatically on-the-fly - AWS Lambda@Edge is a general-purpose serverless compute feature that supports a wide range of computing needs and customizations. Lambda@Edge is best suited for computationally intensive operations. This is not relevant for the given use case.

Use Global Accelerator to transparently switch between S3 bucket and load balancer for different data needs - AWS Global Accelerator is a networking service that improves the performance of your users’ traffic by up to 60% using Amazon Web Services’ global network infrastructure.

With Global Accelerator, you are provided two global static public IPs that act as a fixed entry point to your application, improving availability. On the back end, add or remove your AWS application endpoints, such as Application Load Balancers, Network Load Balancers, EC2 Instances, and Elastic IPs without making user-facing changes. Global Accelerator automatically re-routes your traffic to your nearest healthy available endpoint to mitigate endpoint failure.

CloudFront improves performance for both cacheable content (such as images and videos) and dynamic content (such as API acceleration and dynamic site delivery). Global Accelerator is a good fit for non-HTTP use cases, such as gaming (UDP), IoT (MQTT), or Voice over IP, as well as for HTTP use cases that specifically require static IP addresses or deterministic, fast regional failover.

Global Accelerator is not relevant for the given use-case.

Use CloudFront's Origin Groups to group both static and dynamic requests into one request for further processing - You can set up CloudFront with origin failover for scenarios that require high availability. To get started, you create an Origin Group with two origins: a primary and a secondary. If the primary origin is unavailable or returns specific HTTP response status codes that indicate a failure, CloudFront automatically switches to the secondary origin. Origin Groups are for origin failure scenarios and not for request routing.

References:

https://docs.aws.amazon.com/AmazonCloudFront/latest/DeveloperGuide/distribution-overview.html

https://docs.aws.amazon.com/AmazonCloudFront/latest/DeveloperGuide/high_availability_origin_failover.html

Correct option:

Use AWS KMS with automatic key rotation - Server-side encryption is the encryption of data at its destination by the application or service that receives it. Amazon S3 encrypts your data at the object level as it writes it to disks in its data centers and decrypts it for you when you access it. You have three mutually exclusive options, depending on how you choose to manage the encryption keys: Server-Side Encryption with Amazon S3-Managed Keys (SSE-S3), Server-Side Encryption with Customer Master Keys (CMKs) Stored in AWS Key Management Service (SSE-KMS), Server-Side Encryption with Customer-Provided Keys (SSE-C).

When you use server-side encryption with AWS KMS (SSE-KMS), you can use the default AWS managed CMK, or you can specify a customer managed CMK that you have already created. If you don't specify a customer managed CMK, Amazon S3 automatically creates an AWS managed CMK in your AWS account the first time that you add an object encrypted with SSE-KMS to a bucket. By default, Amazon S3 uses this CMK for SSE-KMS.

You can choose to have AWS KMS automatically rotate CMKs every year, provided that those keys were generated within AWS KMS HSMs.

Incorrect options:

Encrypt the data before sending it to Amazon S3 - The act of encrypting data before sending it to Amazon S3 is called Client-Side encryption. You will have to handle the key generation, maintenance and rotation process. Hence, this is not the right choice here.

Import a custom key into AWS KMS and automate the key rotation on an annual basis by using a Lambda function - When you import a custom key, you are responsible for maintaining a copy of your imported keys in your key management infrastructure so that you can re-import them at any time. Also, automatic key rotation is not supported for imported keys. Using Lambda functions to rotate keys is a possible solution, but not an optimal one for the current use case.

Use SSE-C with automatic key rotation on an annual basis - With Server-Side Encryption with Customer-Provided Keys (SSE-C), you manage the encryption keys and Amazon S3 manages the encryption, as it writes to disks, and decryption, when you access your objects. The keys are not stored anywhere in Amazon S3. There is no automatic key rotation facility for this option.

Reference:

https://docs.aws.amazon.com/AmazonS3/latest/userguide/UsingKMSEncryption.html

Correct option:

Use Amazon S3 and make code changes in the application so all uploads are put on S3

Amazon S3 is an object storage built to store and retrieve any amount of data from anywhere on the Internet. It’s a simple storage service that offers an extremely durable, highly available, and infinitely scalable data storage infrastructure at very low costs.

Amazon S3 provides a simple web service interface that you can use to store and retrieve any amount of data, at any time, from anywhere on the web. Using this web service, you can easily build applications that make use of Internet storage.

You can use S3 PutObject API from the application to upload the objects in a single bucket, which is then accessible from all instances.

Incorrect options:

Use Amazon EBS and configure the application AMI to use a snapshot of the same EBS instance while launching new instances - Using EBS to share data between instances is not possible because EBS volume is tied to an instance by definition. Creating a snapshot would only manage to move the stale data into the new instances.

Use Instance Store type of EC2 instances and share the files via file synchronization software

Use Amazon EBS as the storage volume and share the files via file synchronization software

Technically you could use file synchronization software on EC2 instances with EBS or Instance Store type, but that involves a lot of development effort and still would not be as production-ready as just using S3. So both these options are incorrect.

Reference:

https://aws.amazon.com/s3/faqs/

Correct options:

The account A administrator creates an IAM role and attaches a permissions policy

The account A administrator attaches a trust policy to the role that identifies account B as the principal who can assume the role

The account B administrator delegates the permission to assume the role to any users in account B

To grant cross-account permissions, you need to attach an identity-based permissions policy to an IAM role. For example, the AWS account A administrator can create a role to grant cross-account permissions to AWS account B as follows:

1. The account A administrator creates an IAM role and attaches a permissions policy—that grants permissions on resources in account A—to the role.
2. The account A administrator attaches a trust policy to the role that identifies account B as the principal who can assume the role.
3. The account B administrator delegates the permission to assume the role to any users in account B. This allows users in account B to create or access queues in account A.

Incorrect options:

The account B administrator creates an IAM role and attaches a trust policy to the role with account B as the principal - As mentioned above, the account A administrator needs to create an IAM role and then attach a permissions policy. So, this option is incorrect.

The account A administrator delegates the permission to assume the role to any users in account A - This is irrelevant, as users in account B need to be given access.

The account A administrator attaches a trust policy to the role that identifies account B as the AWS service principal who can assume the role - AWS service principal is given as principal in the trust policy when you need to grant the permission to assume the role to an AWS service. The given use case talks about giving permission to another account. So, service principal is not an option here.

Reference:

https://docs.aws.amazon.com/AWSSimpleQueueService/latest/SQSDeveloperGuide/sqs-overview-of-managing-access.html
