Cisco 350-401 ENCOR V1.2 Practice Questions

Exam guide: "In essence, two trees are created: an SPT from the FHR to the RP (S,G) and a shared tree from the RP to the LHR (*,G)". The RP is the root of the shared tree in PIM sparse mode, C is correct.

Question 112

Why is an AP joining a different WLC than the one specified through option 43?

A. The AP is joining a primed WLC

B. The APs broadcast traffic is unable to reach the WLC through Layer 2

C. The AP multicast traffic is unable to reach the WLC through Layer 3

D. The WLC is running a different software version

check_circle

Correct AnswerA

The order of selecting a WLC according to the exam guide:

1: If the AP has previously joined a controller and has been configured or "primed" with a primary, secondary, and tertiary controller, it tries to join those controllers in succession.

2. If the AP does not know of any candidate controller, it tries to discover one (which includes the use of option 43).

Priming an AP directly overrules option 43, so A should be the correct answer.

Question 113

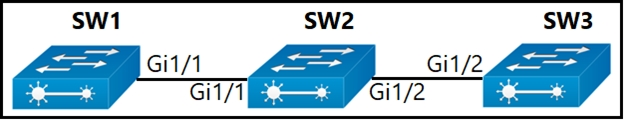

Company policy restricts VLAN 10 to be allowed only on SW1 and SW2. All other VLANs can be on all three switches. An administrator has noticed that VLAN 10 has propagated to SW3.

Which configuration corrects the issue?

A. SW1(config)#int gi1/1 SW1(config)#switchport trunk allowed vlan 1-9,11-4094

B. SW2(config)#int gi1/2 SW2(config)#switchport trunk allowed vlan 10

C. SW2(config)#int gi1/2 SW2(config)#switchport trunk allowed vlan 1-9,11-4094

D. SW1(config)#int gi1/1 SW1(config)#switchport trunk allowed vlan 10

check_circle

Correct AnswerC

C is the correct answer. A is wrong because we need the vlan 10 in sw1-sw2 trunk.

Question 114

Which First Hop Redundancy Protocol should be used to meet a design requirement for more efficient default gateway bandwidth usage across multiple devices?

A. GLBP

B. LACP

C. HSRP

D. VRRP

check_circle

Correct AnswerA

glbp: cisco prop, load balancing per request/per host

lacp: not a fhrp

hsrp: cisco prop, no load balancing, active/passive, useful in DC with VPC

vrrp: ietf, for saving an ip address

Question 115

A client device roams between access points located on different floors in an atrium. The access points are joined to the same controller and configured in local mode. The access points are in different AP groups and have different IP addresses, but the client VLAN in the groups is the same.

Which type of roam occurs?

A. inter-controller

B. inter-subnet

C. intra-VLAN

D. intra-controller

check_circle

Correct AnswerD

Intra means within while inter means between, so as long as the APs are on the same WLC, then it is a intra-controller.

Question 116

Which DHCP option helps lightweight APs find the IP address of a wireless LAN controller?

A. Option 43

B. Option 60

C. Option 67

D. Option 150

check_circle

Correct AnswerA

Question 117

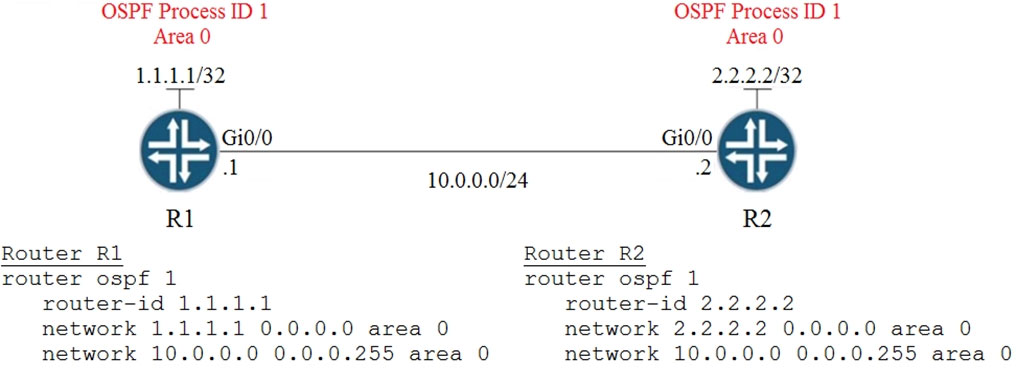

Refer to the exhibit.

A network engineer is configuring OSPF between router R1 and router R2. The engineer must ensure that a DR/BDR election does not occur on the Gigabit

Ethernet interfaces in area 0.

Which configuration set accomplishes this goal?

A. R1(config-if)interface Gi0/0 R1(config-if)ip ospf network point-to-point R2(config-if)interface Gi0/0 R2(config-if)ip ospf network point-to-point

B. R1(config-if)interface Gi0/0 R1(config-if)ip ospf network broadcast R2(config-if)interface Gi0/0 R2(config-if)ip ospf network broadcast

C. R1(config-if)interface Gi0/0 R1(config-if)ip ospf database-filter all out R2(config-if)interface Gi0/0 R2(config-if)ip ospf database-filter all out

D. R1(config-if)interface Gi0/0 R1(config-if)ip ospf priority 1 R2(config-if)interface Gi0/0 R2(config-if)ip ospf priority 1

check_circle

Correct AnswerA

The ospf will use the loop back int to form the adjacency after the configuration is done. A is correct answer.

Question 118

Refer to the exhibit.

Which type of antenna does the radiation pattern represent?

A. multidirectional

B. directional patch

C. omnidirectional

D. Yagi

check_circle

Correct AnswerD

Reference:

https://www.cisco.com/c/en/us/products/collateral/wireless/aironet-antennas-accessories/prod_white_paper0900aecd806a1a3e.html

Question 119

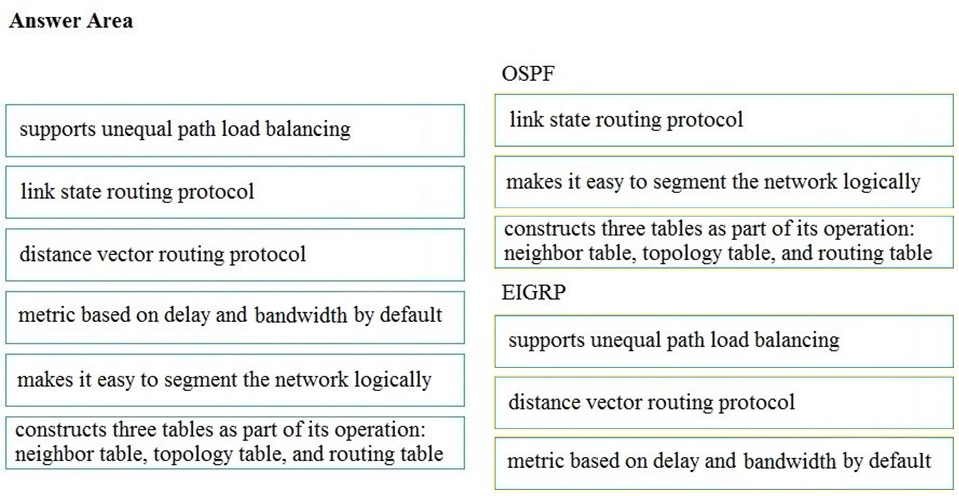

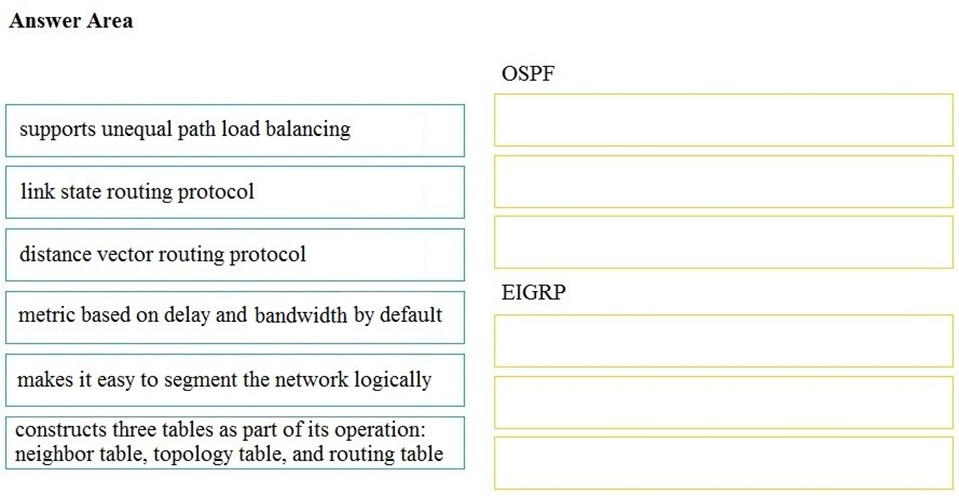

DRAG DROP -

Drag and drop the characteristics from the left onto the correct routing protocol types on the right.

Select and Place:

Reference Answer

Question 120

Which feature is supported by EIGRP but is not supported by OSPF?

A. route filtering

B. unequal-cost load balancing

C. route summarization

D. equal-cost load balancing

check_circle

Correct AnswerB
