Correct option:

S3 Cross-Origin Resource Sharing (CORS) - Cross-origin resource sharing (CORS) defines a way for client web applications that are loaded in one domain to interact with resources in a different domain. With CORS support, you can build rich client-side web applications with Amazon S3 and selectively allow cross-origin access to your Amazon S3 resources.

To configure your bucket to allow cross-origin requests, you create a CORS configuration. The CORS configuration is a document with rules that identify the origins that you will allow to access your bucket, the operations (HTTP methods) that will support each origin, and other operation-specific information. You can add up to 100 rules to the configuration. You can add the CORS configuration as the cors subresource to the bucket.

If you are configuring CORS in the S3 console, you must use JSON to create a CORS configuration. The new S3 console only supports JSON CORS configurations.

Incorrect options:

S3 Transfer Acceleration - Amazon S3 Transfer Acceleration enables fast, easy, and secure transfers of files over long distances between your client and your Amazon S3 bucket. S3 Transfer Acceleration leverages Amazon CloudFront’s globally distributed AWS Edge Locations. As data arrives at an AWS Edge Location, data is routed to your Amazon S3 bucket over an optimized network path.

S3 Access Analyzer - Access Analyzer for S3 is a feature that monitors your access policies, ensuring that the policies provide only the intended access to your S3 resources. Access Analyzer for S3 evaluates your bucket access policies and enables you to discover and swiftly remediate buckets with potentially unintended access.

S3 Access Points - Amazon S3 Access Points simplifies managing data access at scale for applications using shared data sets on S3. With S3 Access Points, you can now easily create hundreds of access points per bucket, representing a new way of provisioning access to shared data sets. Access Points provide a customized path into a bucket, with a unique hostname and access policy that enforces the specific permissions and network controls for any request made through the access point.

None of these three options will help achieve the access required for the current use-case and hence are all incorrect options.

References:

https://docs.aws.amazon.com/AmazonS3/latest/userguide/ManageCorsUsing.html

https://aws.amazon.com/s3/faqs/

Correct option:

Sticky sessions are enabled for the load balancer - This can be the reason for potential unequal traffic routing by the load balancer. Sticky sessions are a mechanism to route requests to the same target in a target group. This is useful for servers that maintain state information in order to provide a continuous experience to clients. To use sticky sessions, the clients must support cookies.

When a load balancer first receives a request from a client, it routes the request to a target, generates a cookie named AWSALB that encodes information about the selected target, encrypts the cookie, and includes the cookie in the response to the client. The client should include the cookie that it receives in subsequent requests to the load balancer. When the load balancer receives a request from a client that contains the cookie, if sticky sessions are enabled for the target group and the request goes to the same target group, the load balancer detects the cookie and routes the request to the same target.

If you use duration-based session stickiness, configure an appropriate cookie expiration time for your specific use case. If you set session stickiness from individual applications, use session cookies instead of persistent cookies where possible.

Instances of a specific capacity type aren’t equally distributed across Availability Zones - A Classic Load Balancer with HTTP or HTTPS listeners might route more traffic to higher-capacity instance types. This distribution aims to prevent lower-capacity instance types from having too many outstanding requests. It’s a best practice to use similar instance types and configurations to reduce the likelihood of capacity gaps and traffic imbalances.

A traffic imbalance might also occur if you have instances of similar capacities running on different Amazon Machine Images (AMIs). In this scenario, the imbalance of the traffic in favor of higher-capacity instance types is desirable.

Incorrect options:

There could be short-lived TCP connections between clients and instances - This is an incorrect statement. Long-lived TCP connections between clients and instances can potentially lead to unequal distribution of traffic by the load balancer. Long-lived TCP connections between clients and instances cause uneven traffic load distribution by design. As a result, new instances take longer to reach connection equilibrium. Be sure to check your metrics for long-lived TCP connections that might be causing routing issues in the load balancer.

For Application Load Balancers, cross-zone load balancing is disabled by default - This is an incorrect statement. With Application Load Balancers, cross-zone load balancing is always enabled.

After you disable an Availability Zone, the targets in that Availability Zone remain registered with the load balancer, thereby receiving random bursts of traffic - This is an incorrect statement. After you disable an Availability Zone, the targets in that Availability Zone remain registered with the load balancer. However, even though they remain registered, the load balancer does not route traffic to them.

References:

https://docs.aws.amazon.com/elasticloadbalancing/latest/application/load-balancer-target-groups.html#sticky-sessions

https://aws.amazon.com/premiumsupport/knowledge-center/elb-fix-unequal-traffic-routing/

https://docs.aws.amazon.com/elasticloadbalancing/latest/userguide/how-elastic-load-balancing-works.html#availability-zones

Correct option:

Restrict access by using CORS - Cross-origin resource sharing (CORS) defines a way for client web applications that are loaded in one domain to interact with resources in a different domain. When your API's resources receive requests from a domain other than the API's own domain and you want to restrict servicing these requests, you must disable cross-origin resource sharing (CORS) for selected methods on the resource.

Incorrect options:

Use Account-level throttling - To prevent your API from being overwhelmed by too many requests, Amazon API Gateway throttles requests to your API. By default, API Gateway limits the steady-state request rate to 10,000 requests per second (rps). It limits the burst (that is, the maximum bucket size) to 5,000 requests across all APIs within an AWS account. This is Account-level throttling. As you see, this is about limit on the number of requests and is not a suitable answer for the current scenario.

Use Mapping Templates - A mapping template is a script expressed in Velocity Template Language (VTL) and applied to the payload using JSONPath expressions. Mapping templates help format/structure the data in a way that it is easily readable, unlike a server response that might always be easy to ready. Mapping Templates have nothing to do with access and are not useful for the current scenario.

Assign a Security Group to your API Gateway - API Gateway does not use security groups but uses resource policies, which are JSON policy documents that you attach to an API to control whether a specified principal (typically an IAM user or role) can invoke the API. You can restrict IP address using this, the downside being, an IP address can be changed by the accessing user. So, this is not an optimal solution for the current use case.

References:

https://docs.aws.amazon.com/AmazonS3/latest/dev/cors.html

https://docs.aws.amazon.com/apigateway/latest/developerguide/http-api-protect.html

https://docs.aws.amazon.com/apigateway/latest/developerguide/rest-api-data-transformations.html

Correct option:

Create a high-resolution custom metric and push the data using a script triggered every 10 seconds

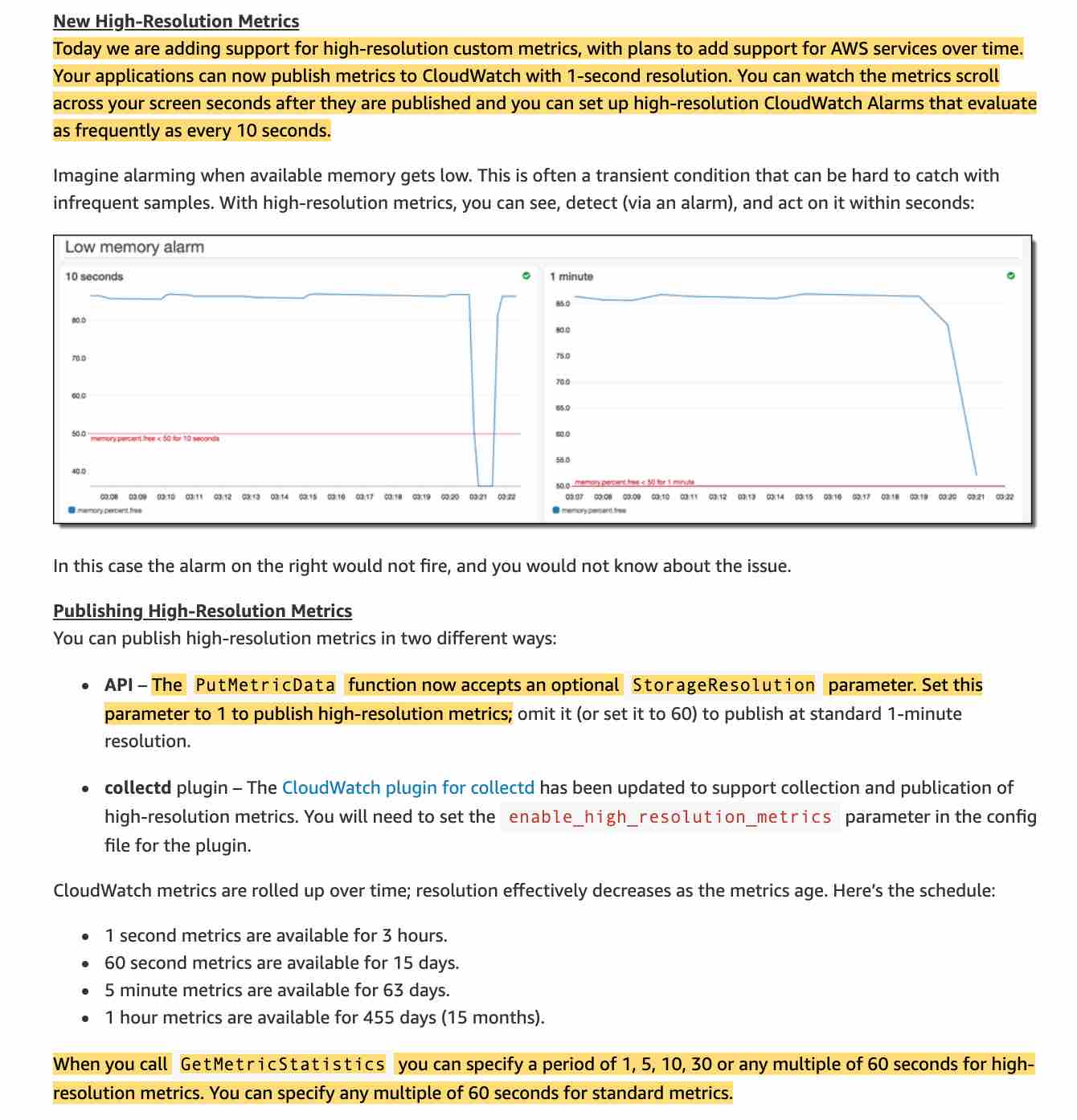

Using high-resolution custom metric, your applications can publish metrics to CloudWatch with 1-second resolution. You can watch the metrics scroll across your screen seconds after they are published and you can set up high-resolution CloudWatch Alarms that evaluate as frequently as every 10 seconds. You can alert with High-Resolution Alarms, as frequently as 10-second periods. High-Resolution Alarms allow you to react and take actions faster and support the same actions available today with standard 1-minute alarms.

via - https://aws.amazon.com/blogs/aws/new-high-resolution-custom-metrics-and-alarms-for-amazon-cloudwatch/

Incorrect options:

Enable EC2 detailed monitoring - As part of basic monitoring, Amazon EC2 sends metric data to CloudWatch in 5-minute periods. To send metric data for your instance to CloudWatch in 1-minute periods, you can enable detailed monitoring on the instance, however, this comes at an additional cost.

Simply get it from the CloudWatch Metrics - You can get data from metrics. The basic monitoring data is available automatically in a 5-minute interval and detailed monitoring data is available in a 1-minute interval.

Open a support ticket with AWS - This option has been added as a distractor.

Reference:

https://aws.amazon.com/blogs/aws/new-high-resolution-custom-metrics-and-alarms-for-amazon-cloudwatch/

Correct option:

The cluster name Parameter has not been updated in the file /etc/ecs/ecs.config during bootstrap - In the ecs.config file you have to configure the parameter ECS_CLUSTER='your_cluster_name' to register the container instance with a cluster named 'your_cluster_name'.

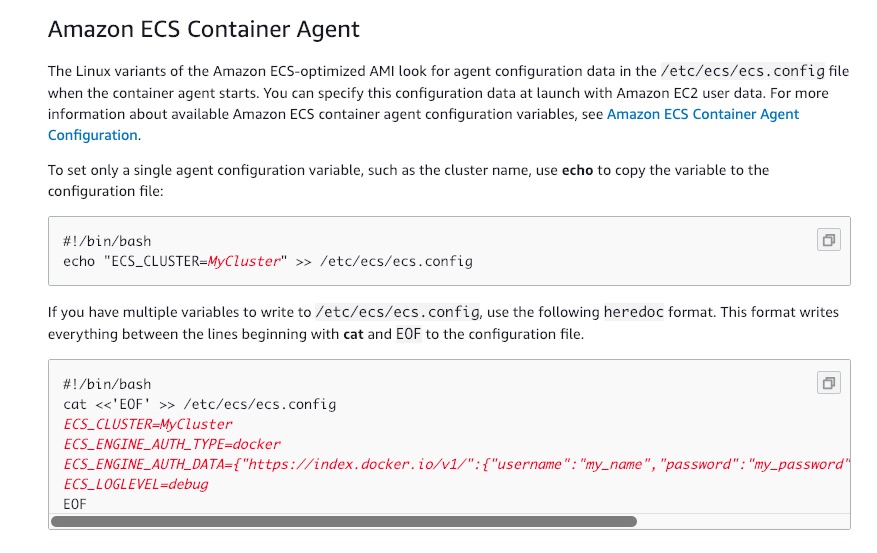

Sample config for ECS Container Agent:

via - https://docs.aws.amazon.com/AmazonECS/latest/developerguide/bootstrap_container_instance.html

Incorrect options:

The EC2 instance is missing IAM permissions to join the other clusters - EC2 instances are getting registered to the first cluster, so permissions are not an issue here and hence this statement is an incorrect choice for the current use case.

The ECS agent Docker image must be re-built to connect to the other clusters - Since the first set of instances got created from the template without any issues, there is no issue with the ECS agent here.

The security groups on the EC2 instance are pointing to the wrong ECS cluster - Security groups govern the rules about the incoming network traffic to your ECS containers. The issue here is not about user access and hence is a wrong choice for the current use case.

References:

https://docs.aws.amazon.com/AmazonECS/latest/developerguide/bootstrap_container_instance.html

https://docs.aws.amazon.com/AmazonECS/latest/developerguide/launch_container_instance.html

Correct option:

MOCK

This type of integration lets API Gateway return a response without sending the request further to the backend. This is useful for API testing because it can be used to test the integration setup without incurring charges for using the backend and to enable collaborative development of an API.

In collaborative development, a team can isolate their development effort by setting up simulations of API components owned by other teams by using the MOCK integrations. It is also used to return CORS-related headers to ensure that the API method permits CORS access. In fact, the API Gateway console integrates the OPTIONS method to support CORS with a mock integration.

Incorrect options:

AWS_PROXY - This type of integration lets an API method be integrated with the Lambda function invocation action with a flexible, versatile, and streamlined integration setup. This integration relies on direct interactions between the client and the integrated Lambda function.

HTTP_PROXY - The HTTP proxy integration allows a client to access the backend HTTP endpoints with a streamlined integration setup on single API method. You do not set the integration request or the integration response. API Gateway passes the incoming request from the client to the HTTP endpoint and passes the outgoing response from the HTTP endpoint to the client.

HTTP - This type of integration lets an API expose HTTP endpoints in the backend. With the HTTP integration, you must configure both the integration request and integration response. You must set up necessary data mappings from the method request to the integration request, and from the integration response to the method response.

Reference:

https://docs.aws.amazon.com/apigateway/latest/developerguide/api-gateway-api-integration-types.html

Correct option:

"CodeDeploy Agent"

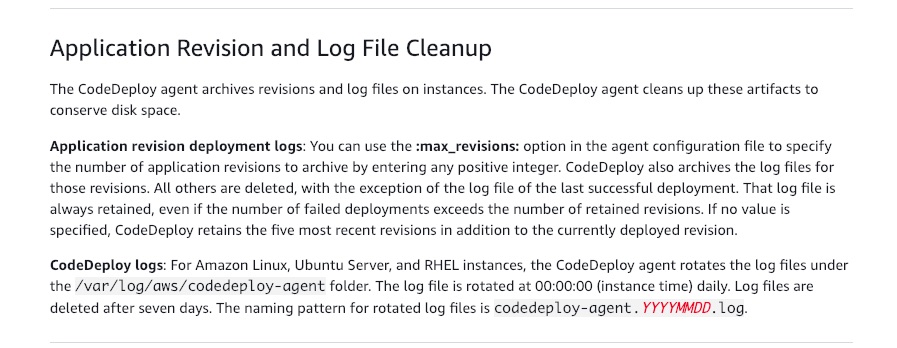

The CodeDeploy agent is a software package that, when installed and configured on an instance, makes it possible for that instance to be used in CodeDeploy deployments. The CodeDeploy agent archives revisions and log files on instances. The CodeDeploy agent cleans up these artifacts to conserve disk space. You can use the :max_revisions: option in the agent configuration file to specify the number of application revisions to the archive by entering any positive integer. CodeDeploy also archives the log files for those revisions. All others are deleted, except for the log file of the last successful deployment.

More info here:

via - https://docs.aws.amazon.com/codedeploy/latest/userguide/codedeploy-agent.html

Incorrect options:

AWS CloudWatch Log Agent - The CloudWatch Logs agent provides an automated way to send log data to CloudWatch Logs from Amazon EC2 instances. This is an incorrect choice for the current use case.

Integrate with AWS CodePipeline - AWS CodePipeline is a fully managed continuous delivery service that helps you automate your release pipelines for fast and reliable application and infrastructure updates. CodeCommit and CodePipeline are already integrated services. CodePipeline cannot help in version control and management of archives on an EC2 instance.

Have a load balancer in front of your instances - Load Balancer helps balance incoming traffic across different EC2 instances. It is an incorrect choice for the current use case.

References:

https://docs.aws.amazon.com/codedeploy/latest/userguide/codedeploy-agent.html

https://docs.aws.amazon.com/AmazonCloudWatch/latest/logs/AgentReference.html

Correct option:

Use Cognito User Pools - As an alternative to using IAM roles and policies or Lambda authorizers, you can use an Amazon Cognito user pool to control who can access your API in Amazon API Gateway. To use an Amazon Cognito user pool with your API, you must first create an authorizer of the COGNITO_USER_POOLS type and then configure an API method to use that authorizer. After the API is deployed, the client must first sign the user into the user pool, obtain an identity or access token for the user, and then call the API method with one of the tokens, which are typically set to the request's Authorization header. The API call succeeds only if the required token is supplied and the supplied token is valid, otherwise, the client isn't authorized to make the call because the client did not have credentials that could be authorized.

Incorrect options:

Use Lambda Authorizer- A Lambda authorizer (formerly known as a custom authorizer) is an API Gateway feature that uses a Lambda function to control access to your API. A Lambda authorizer is useful if you want to implement a custom authorization scheme that uses a bearer token authentication strategy such as OAuth or SAML, or that uses request parameters to determine the caller's identity. This won't be a fully managed user management solution but it would allow you to check for access at the AWS API Gateway level.

Use IAM permissions with sigv4 - Signature Version 4 is the process to add authentication information to AWS requests sent by HTTP. For security, most requests to AWS must be signed with an access key, which consists of an access key ID and secret access key. These two keys are commonly referred to as your security credentials. But, we cannot possibly create an IAM user for every visitor of the site, so this is where social identity providers come in to help.

Use API Gateway User Pools - This is a made-up option.

References:

https://docs.aws.amazon.com/apigateway/latest/developerguide/apigateway-integrate-with-cognito.html

https://docs.aws.amazon.com/apigateway/latest/developerguide/apigateway-use-lambda-authorizer.html

https://docs.aws.amazon.com/general/latest/gr/signature-version-4.html

Correct option:

AWS Web Application Firewall (AWS WAF)

Amazon API Gateway is an AWS service for creating, publishing, maintaining, monitoring, and securing REST, HTTP, and WebSocket APIs at any scale.

API Gateway REST APIs: A collection of HTTP resources and methods that are integrated with backend HTTP endpoints, Lambda functions, or other AWS services. You can deploy this collection in one or more stages. Typically, API resources are organized in a resource tree according to the application logic. Each API resource can expose one or more API methods that have unique HTTP verbs supported by API Gateway.

API Gateway HTTP API: A collection of routes and methods that are integrated with backend HTTP endpoints or Lambda functions. You can deploy this collection in one or more stages. Each route can expose one or more API methods that have unique HTTP verbs supported by API Gateway.

AWS Lambda, AWS Identity and Access Management (IAM) and Amazon Cognito services are all available as HTTP APIs. AWS Web Application Firewall (AWS WAF) however, is only available in REST APIs.

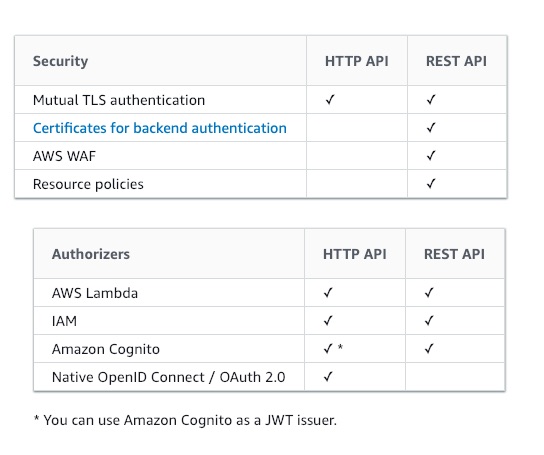

Choosing between HTTP API or REST API:

https://docs.aws.amazon.com/apigateway/latest/developerguide/http-api-vs-rest.html

Incorrect options:

AWS Lambda

AWS Identity and Access Management (IAM)

Amazon Cognito

These three options contradict the explanation above, so these options are incorrect.

Reference:

https://docs.aws.amazon.com/apigateway/latest/developerguide/http-api-vs-rest.html

Correct option:

Enable API Gateway Caching - You can enable API caching in Amazon API Gateway to cache your endpoint's responses. With caching, you can reduce the number of calls made to your endpoint and also improve the latency of requests to your API. When you enable caching for a stage, API Gateway caches responses from your endpoint for a specified time-to-live (TTL) period, in seconds. API Gateway then responds to the request by looking up the endpoint response from the cache instead of making a request to your endpoint. The default TTL value for API caching is 300 seconds. The maximum TTL value is 3600 seconds. TTL=0 means caching is disabled.

Incorrect options:

Use Mapping Templates - A mapping template is a script expressed in Velocity Template Language (VTL) and applied to the payload using JSONPath expressions. Mapping templates help format/structure the data in a way that it is easily readable, unlike a server response that might always be easy to ready. Mapping Templates do not help in latency issues of the APIs.

Use Stage Variables - Stage variables act like environment variables and can be used to change the behavior of your API Gateway methods for each deployment stage; for example, making it possible to reach a different back end depending on which stage the API is running on. Stage variables do not help in latency issues.

Use Amazon Kinesis Data Streams to stream incoming data and reduce the burden on Gateway APIs - Amazon Kinesis Data Streams (KDS) is a massively scalable and durable real-time data streaming service. KDS can continuously capture gigabytes of data per second from hundreds of thousands of sources such as website clickstreams, database event streams, financial transactions, social media feeds, IT logs, and location-tracking events.

Reference:

https://docs.aws.amazon.com/apigateway/latest/developerguide/api-gateway-caching.html
